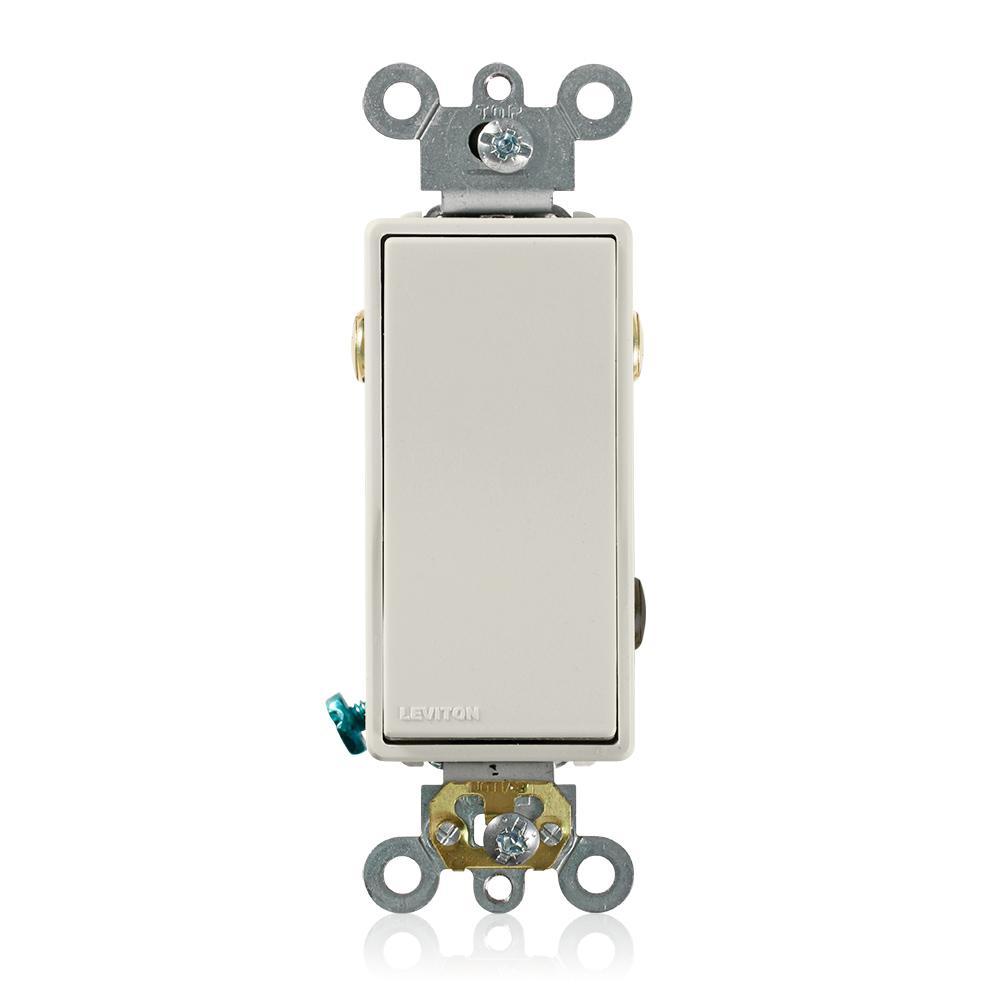

Sku #07847727107
MFG #5623-2T
Attributes
| Type: | 3-Way Self-Grounding |
| Amperage Rating: | 20 A |
| Contact Rating: | 20 A at 120/277 V AC |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 1 hp, 2 hp |
| Action: | Maintained/Momentary |
- Commercial Applications
- Full rated current capacity with tungsten, fluorescent or resistive loads
- Motor capacity is 80% of switch rating
- Back and side wiring terminals accept both solid and stranded wire for easy installation
- New architecturally styled smooth action concave rocker
- Heavy duty impact resistant thermoplastic construction for long service life in commercial applications
- Two ground connection options a green grounding screw and a self-grounding clip
- Engineered for fine tolerances and top performance
- Decora® plus switches feature impact resistant thermoplastic construction for long service life
- ANSI C73|CSA File No. LR3413|CSA C22.2 No. 111 File No. 152105|Federal Specification WS896E File No. E7458|NEMA WD1/WD6|NOM 057|UL 20|UL94 V-2 Flammability Rating
