Sku #07847725100
MFG #5842
Attributes

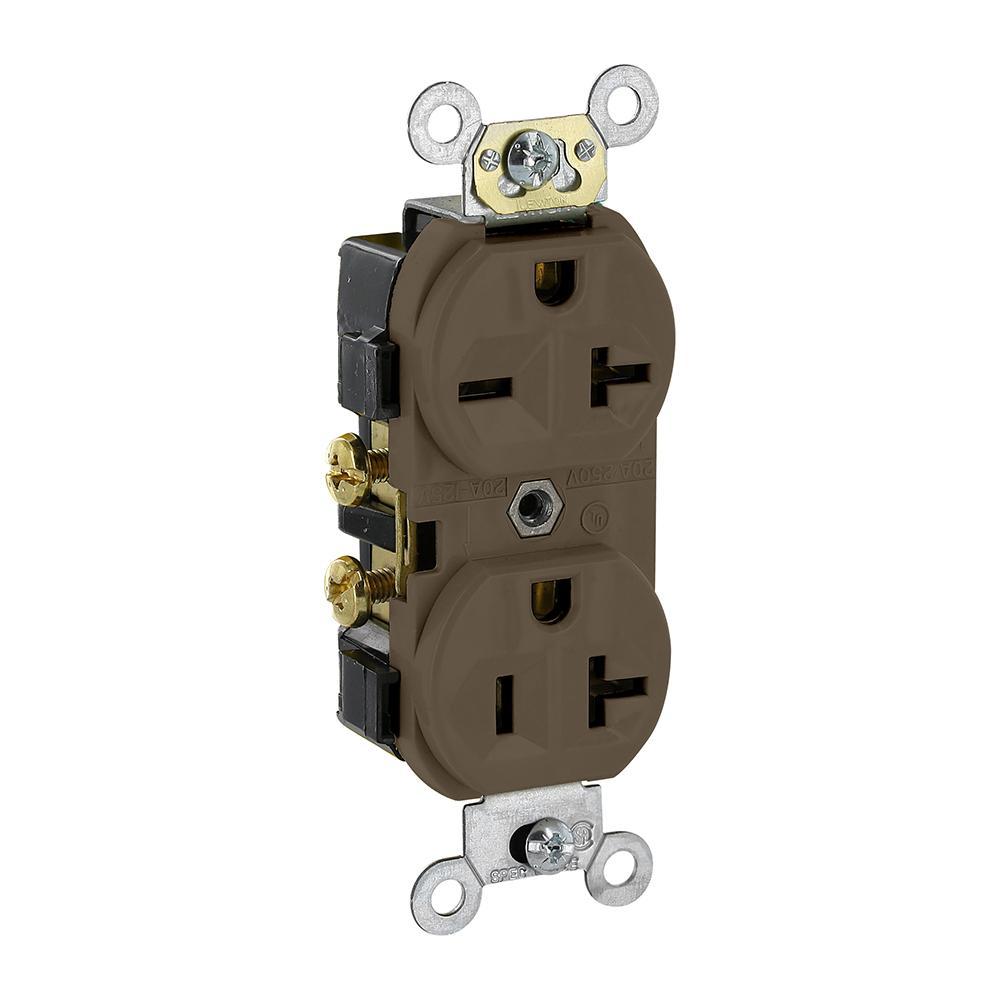

| Type: | 1-Phase Duplex Dual Voltage Self-Grounding |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125/250 V AC |
| Horsepower: | 1 hp, 2 hp |
| Number of Wires: | 3 |
- Terminal wiring screws fit inside a standard 1-gang wall box, adapter plate not required
- Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives
- Easy-to-read voltage and amperage rating molded onto smooth face
- Extra heavy-duty, T-type triple wipe bronze contacts for maximum performance
- Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs
- #8 terminal screws accept up to no 12 AWG solid or stranded copper wire
- Termination anchor holes for easy conductor wiring
- Exclusive shield wall design protects ground connection from contact with live circuit conductors
- A and B molded on face and back for easy identification of receptacle pairs for split circuit conversion
- Convenient built-in strip gauge
- Wallbox mounting
- Self-grounding
- 1-phase
- Narrow body
- 2000 VAC minimum dielectric strength
- Zinc plated steel strap
- 1 hp at 125 VAC, 2 hp at 250 VAC power ratings
- 14 to 10 AWG wire terminal
- NEMA WD-2/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification WC596 File No. E13399/UL 498 File No. E13399|UL94 V-2 Flammability Rating
