Sku #07847721807
MFG #H6A10-13E
Attributes
| Type: | High-Flex U/FTP |
| Category Type: | CAT 6a |
| Conductor Type: | Stranded Copper |
| Series: | H6A10 |
| Conductor Size: | 28 AWG |

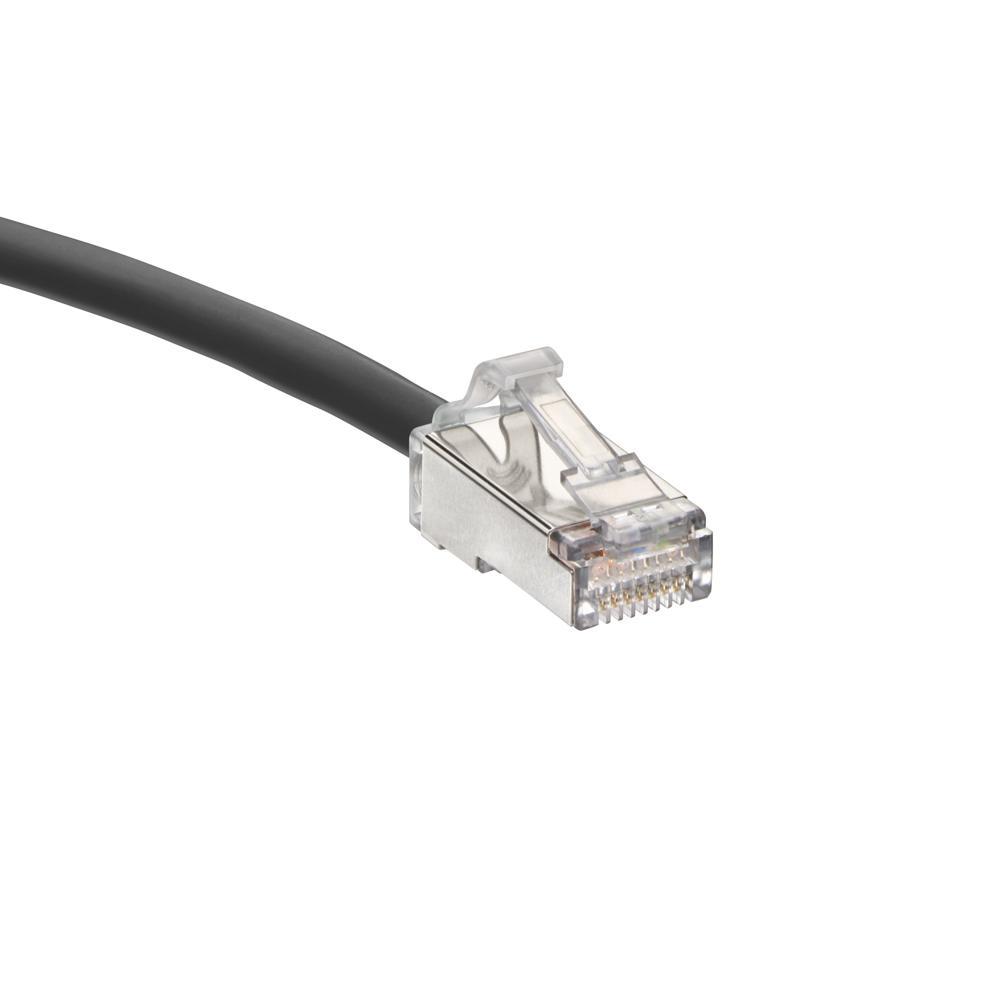

| Connector Type: | 8-Position Modular Non-Keyed Plug |
- For designed to provide connectivity solution for 10 Gigabit applications for all frequencies from 1 to 500 MHz and high speed data applications
- Power over Ethernet (PoE and PoE+) compatible
- Accommodate use in high density switches, routers and other electronics
- Bend radius is a narrow 0.74 in, versus 1 in for typical Cat 6A Patch Cords
- Supports 96 m channels that include 90 m permanent links
- Supports 93 m channels with 10 m of Patch Cords included in the channel
- Under PoE at 90 W, maximum bundle size is 12 cables with a separation of 1-1/2 in from outer edge to outer edge of cable bundles for 28 AWG cables installed in air and a maximum ambient temperature of 113 deg F, as defined in TIA TSB-184-A
- ANSI/TIA-568.2-D/1096-A|Cisco UPoE+|Cisco UPoE+|FCC Part 68|IEC 60332-1|IEEE 802.3bt/802.3af/802.3at|ISO/IEC 11801-1|Power over HDBaseT™ PoH|TIA TSB-184-A|UL 444|UL 94 V-0 Flammability Rating
