Sku #07847710991
MFG #CR20-O
Attributes

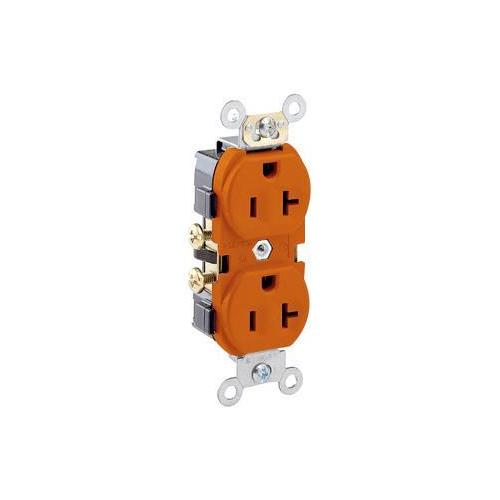

| Type: | 1-Phase Duplex Indented Face Self-Grounding |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- Hotels, Schools, Hospitals and Commercial Office Buildings Applications
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
- Self-grounding
- 2000 VAC minimum dielectric strength
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- 14 to 10 AWG wire terminal
- Narrow body
- Steel #8-32 terminal screws
- Brass 0.031 THK line contacts
- https://www.youtube.com/embed/y_Yvv0D28HE
- NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
