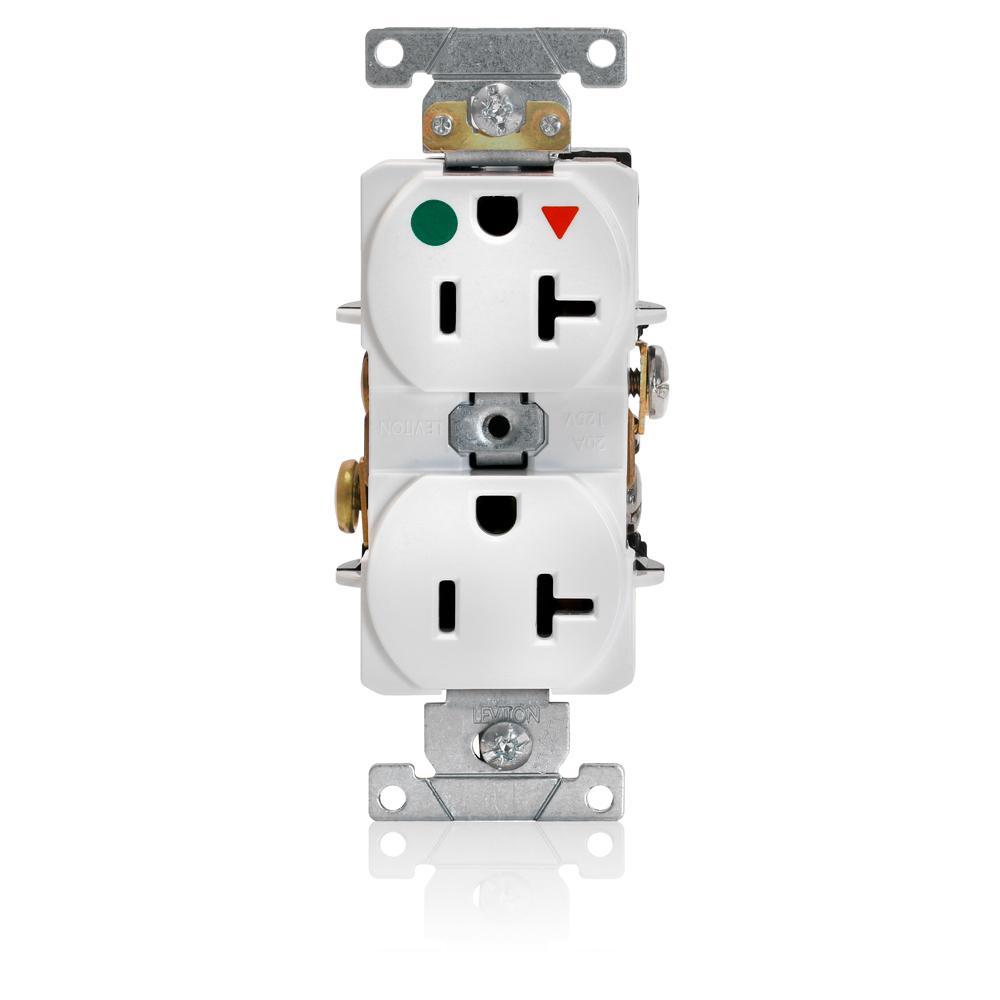

Sku #07847705736
MFG #8300-IGW
Attributes
| Type: | Heavy Duty Isolated Ground Narrow Body |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- Impact-resistant thermoplastic nylon cover and body
- Smooth face does not collect dirt
- Four corner latches securely fasten face
- Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
- High-performance brass no 10-32 terminal screws to reduce conductor oxidation
- Back and side wire ground termination brass strap version
- Back and side wiring options
- Break-off tabs for easy two-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator
- Nickel plated brass clamp nuts/ground clips
- 14 to 10 AWG wire terminal
- Full rated current limiting
- 2000 VAC minimum dielectric strength
- Isolated grounding
- Health Care Facilities, Manufacturing Plants and School Applications
- ANSI (C-73)|CSA C22.2 No. 42 File No. 152105|NOM Certified|UL 498HG File No. E13399|UL Federal Specification W-C-596 E13399|UL94 Flammability Rating
