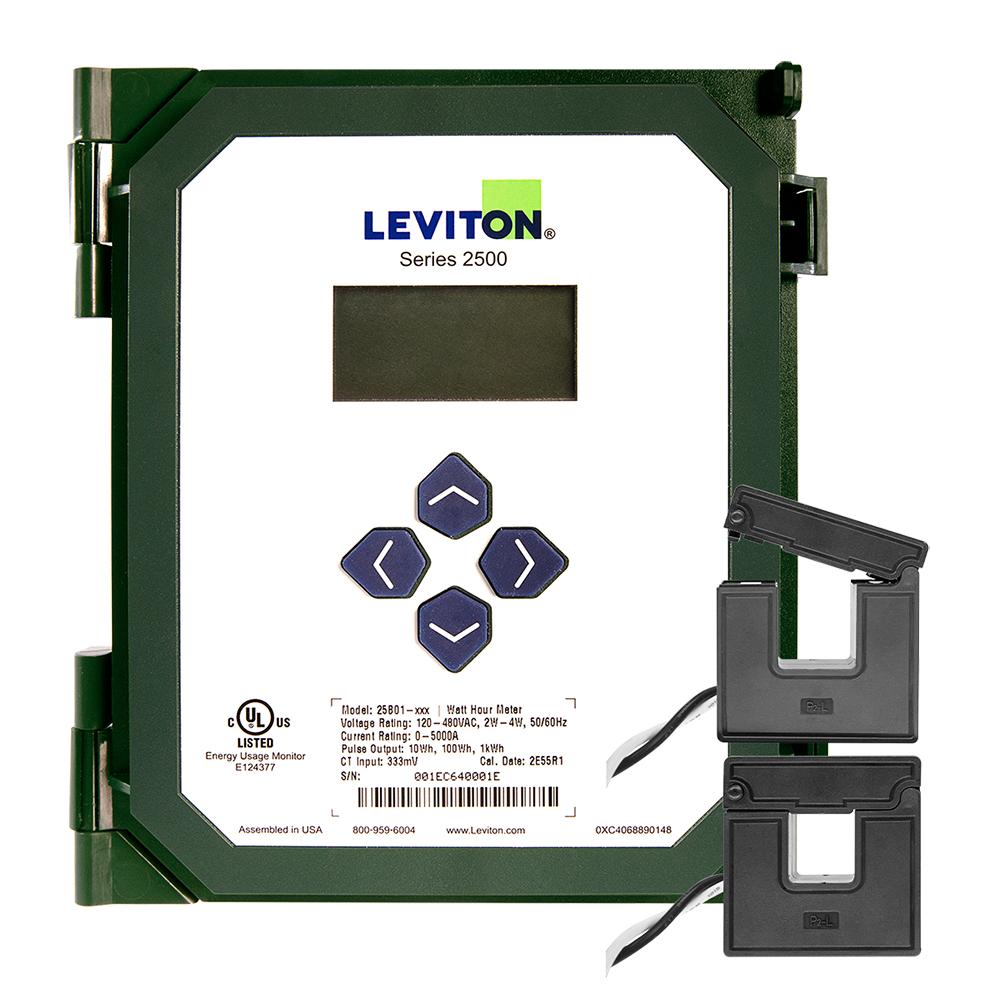

Sku #07847704199
MFG #25B01-B01
Attributes
| Type: | 3 Phase Programmable |
| Amperage Rating: | 100 A |
| Communication: | Modbus RTU |
| Series: | Series 2500 |
| Display Type: | LCD |
| Operating Temperature: | -20 to 70 deg C |
- One model for 1P/2W, 2P/3W, 3P/4W (WYE), 120-480VAC
- Solid core CTs (100A and 200A)
- Installation features, Easy access terminals for CT wiring with WAGO connectors User friendly LCD front panel interface with 4-button navigation Configuration wizard for guidedinitialmeter setup Multiple marked conduit entry locations around the meter housing Built-in diagnostic icons
- Alarms forundervoltage, overvoltage, overcurrent, power factor, and reverse energy to aid with troubleshooting
- Flush mount kit for neat and unobtrusive installation aesthetics
- The single meter is field configurable for 120/208, 277/480, and 120/240 services
- If a Delta Service is needed, please use the 7000 Series
- The meter supports both Pulse and Modbus RTU outputs
- This allows it to work seamlessly with Levitons EMH Hubs, as well as other common Automated Meter Read (AMR) systems
- Themeter can be surface mounted on a wall or installed with an optional FlushMount Kit for a cleaner, lowprofile look
- The meter has an LCD and push buttons forconfiguration
- The steps are simple -
- You can also order the meters preconfigured and kitted with specific Current Transformers from 100A to 800A
- TheLeviton Series 2500 supports 333 mV output CTs
- Meter kits are available withCTs and a preconfigured meter
- IP14|CULUS|ROHS|ANSI C12
- For Commercial, Industrial
