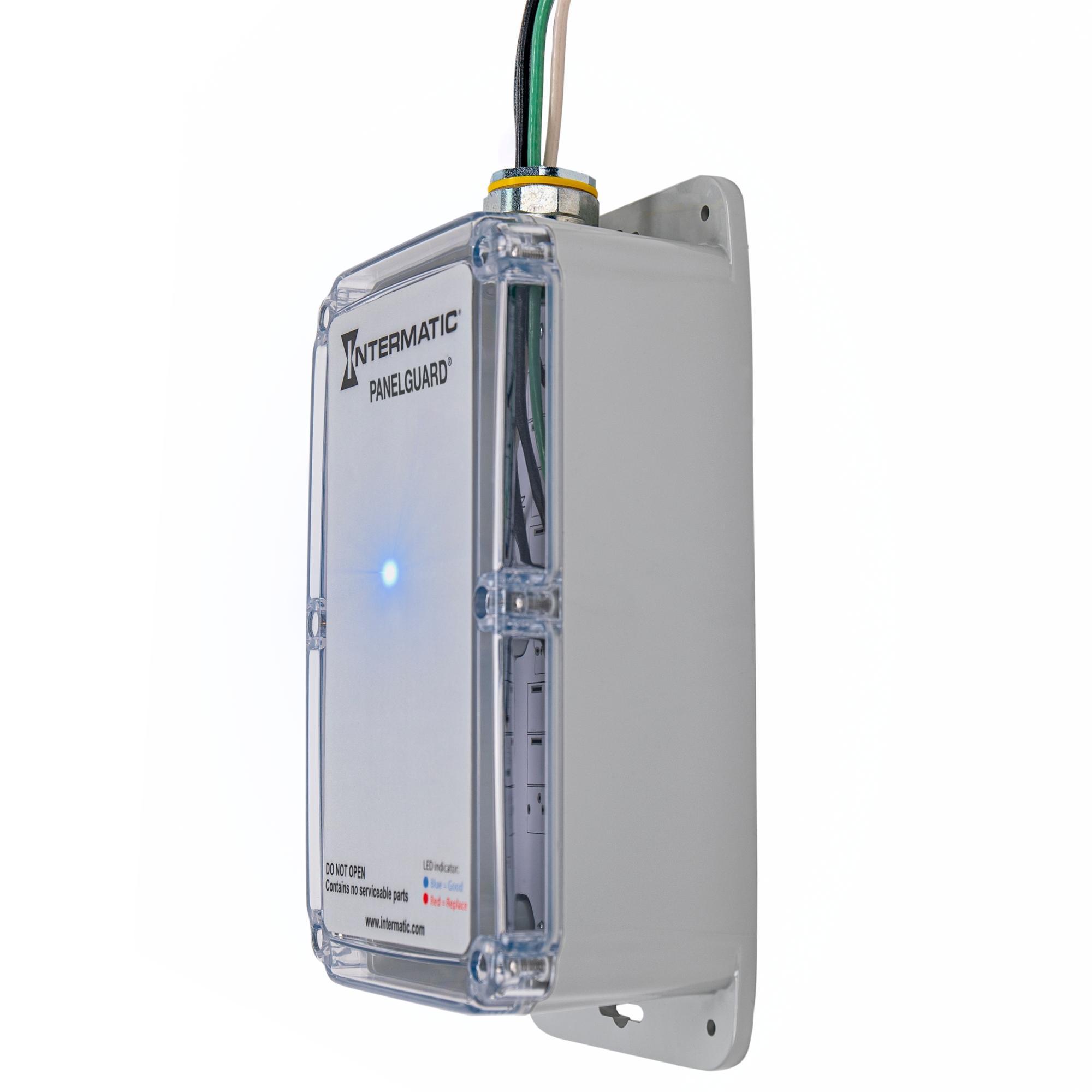

Intermatic® PanelGaurd™ L10F23Y1DG2 Surge Protective Device, 120/208 Wye V, 50/60 Hz, 200 kA SCCR, 3 Phase
Sku #07827515194
MFG #L10F23Y1DG2
Attributes
| Series: | L10 Series |
| Frequency Rating: | 50/60 Hz |
| Short Circuit Current Rating: | 200 kA |
| Electrical Ratings: | 120/208 Wye V |
| Number of Wires: | 4+G |
| Peak Surge Current: | 100 kA |
- Commercial/Industrial, Electrical Distribution Panels, Motor Control, Panel Boards, Switchboards, Switchgear, Transfer Switches, Service Entrance, HVAC Equipment Protection and Indoor/Outdoor Applications
- NEMA 4X enclosure for indoor or outdoor installation
- Individually integrated disconnect TPMOV surge protection technology
- https://youtu.be/t9R3z5i0wOw
- Audible Alarm, Dry Relay Form-C Contact and EMI/RFI Filter
- RohS|ANSI/UL 1283|ANSI/UL 1449 4th Edition|CSA C22.2 No. 269.2-13, and No. 8-13 (VZCA, VZCA7, FOKY, KOKY7)|2020 National Electric Code|Article 242 (previously NEC, Art. 285), 700.10 & 708.20|ANSI/IEEE C62.72-2016|ANSI/IEEE C62.41.1|C62.41.2-2002|C62.45-2002|ANSI/IEEE C62.62-2010 environments: Categories: A, B & C|NFPA 780 & UL 96A Lightning protection systems
- 5 years Limited
