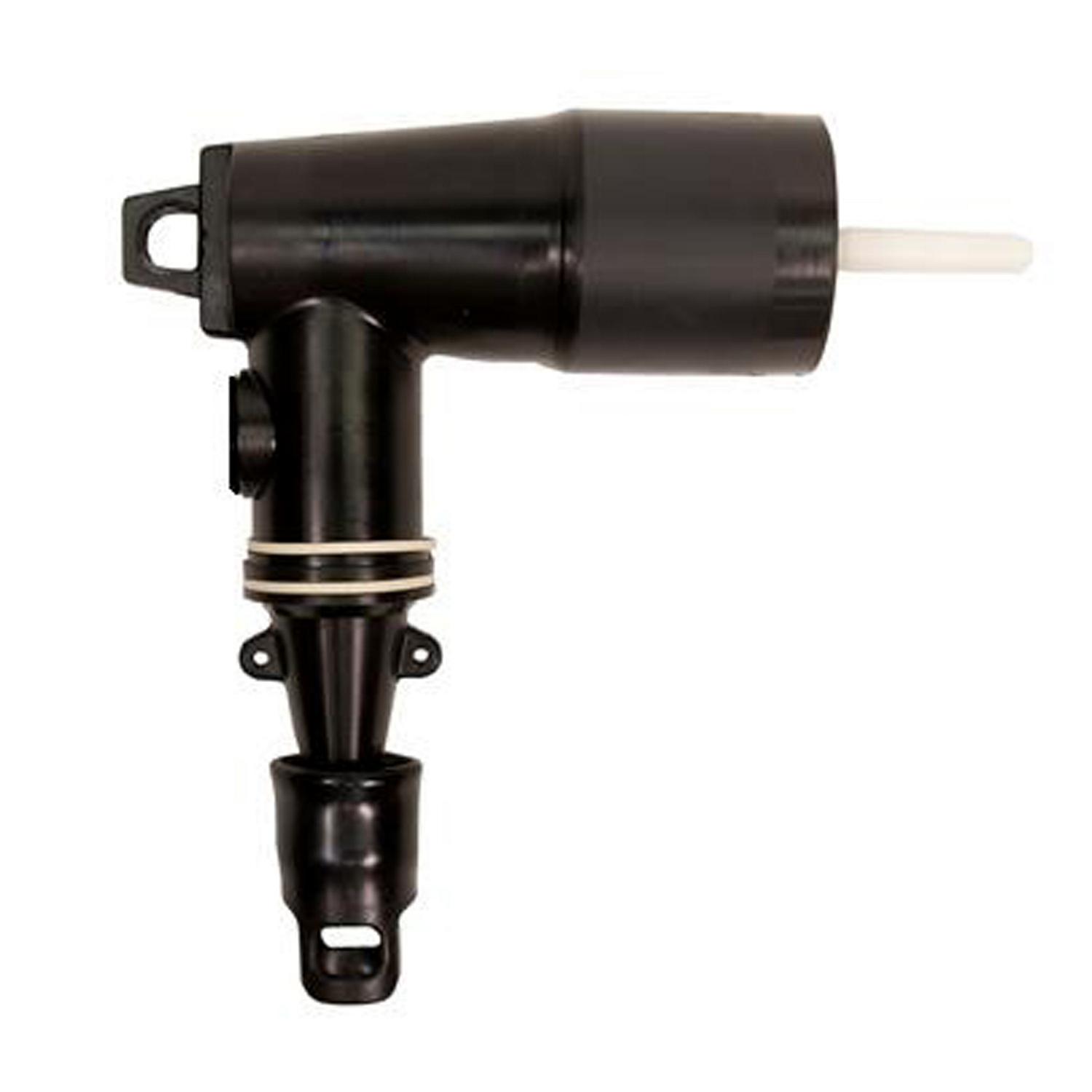

Elastimold® 261LRJS-B5230 Connector, 25 to 28 kV, 200 A, #1 Stranded/Solid and Compact 1/0 Conductor, 0.635 to 0.905 in Dia Insulation, EPDM Rubber
Sku #07511443856
MFG #261LRJS-B5230
Attributes
| Voltage Rating: | 25 to 28 kV |
| Conductor Size: | #1 Stranded/Solid and Compact 1/0 |
| Connector Type: | Compression |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.635 to 0.905 in |
| Material: | EPDM Rubber |
- The 262LRJS is designed for connecting to and operating 25/28kV Class, 200 Amp distribution apparatus, it provides a convenient method to connect/disconnect cable and equipment on power distribution systems
- ANSI/IEEE Standard 386
- (1) Elbow Connector Housing, (1) Bi-Metal Compression Lug, (1) Probe, (1) Probe Wrench, (1) Lubricant Tube, (1) Crimp Chart, (1) Installation Instructions
