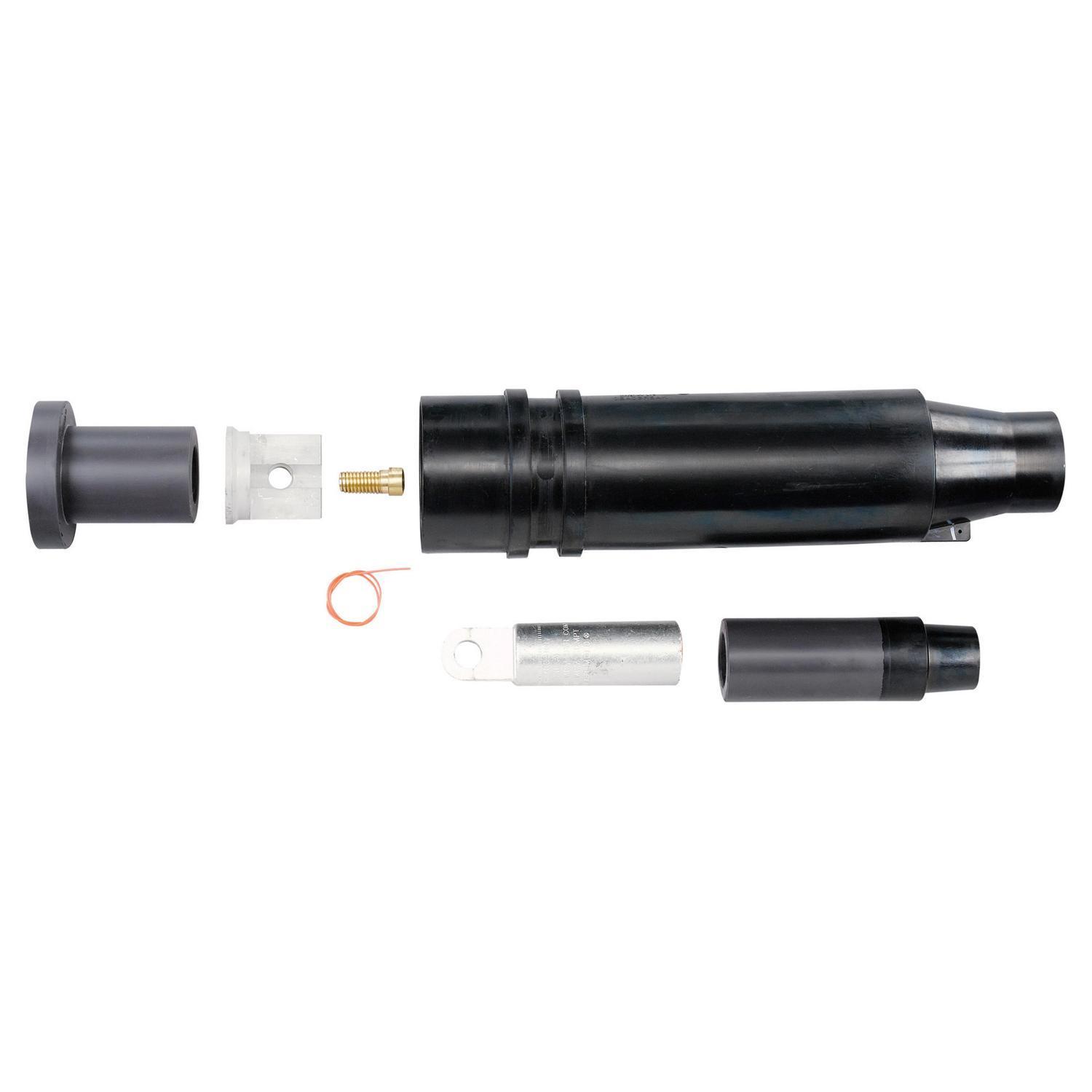

Elastimold® K655YSR-K0310 K65 Straight Receptacle, 15 to 25 kV, 600 A, Compressed Stranded 400 kcmil/Solid Compact 450/500 kcmil/202.68 mm Squared Conductor, 1.090 to 1.310 in Dia Insulation, EPDM Rubber
Sku #07511442418
MFG #K655YSR-K0310
Attributes
| Type: | Straight |
| Voltage Rating: | 15 to 25 kV |
| Conductor Size: | Compressed Stranded 400 kcmil/Solid Compact 450/500 kcmil/202.68 mm Squared |
| Series: | K65 |
| Amperage Rating: | 600 A |
| Insulation Diameter: | 1.090 to 1.310 in |
- Fully Shielded, Fully Submersible, Can be easily Connected or Disconnected in a De-Energized State
- For allow a straight cable connection on Switchgear or Electrical Apparatus equipped with 600 Amp Bushings
- ANSI/IEEE Standard 386
- Straight Receptacle Housing, Cable Adapter, Lug, Adapter Retaining Ring, Washer and Bolts, Lubricant, Installation Instruction Sheet and Crimp Chart
