Elastimold® K655RLR-G0240 Elbow Electrical Connector, 15 to 25 kV, 600 A, 1/0 AWG Stranded/Compressed, 2 AWG Solid/Compact Conductor, 0.760 to 0.950 in Dia Insulation, EPDM Rubber
Sku #07511442354
MFG #K655RLR-G0240
Attributes
| Type: | Elbow |
| Amperage Rating: | 600 A |
| Insulation Diameter: | 0.760 to 0.950 in |
| Voltage Rating: | 15 to 25 kV |
| Conductor Size: | 1/0 AWG Stranded/Compressed, 2 AWG Solid/Compact |
| Connector Type: | Compression |
- Used where Cable has been severed and is not long enough to reach the Elbow
- Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Rubber
- Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state
- ANSI/IEEE Standard 386

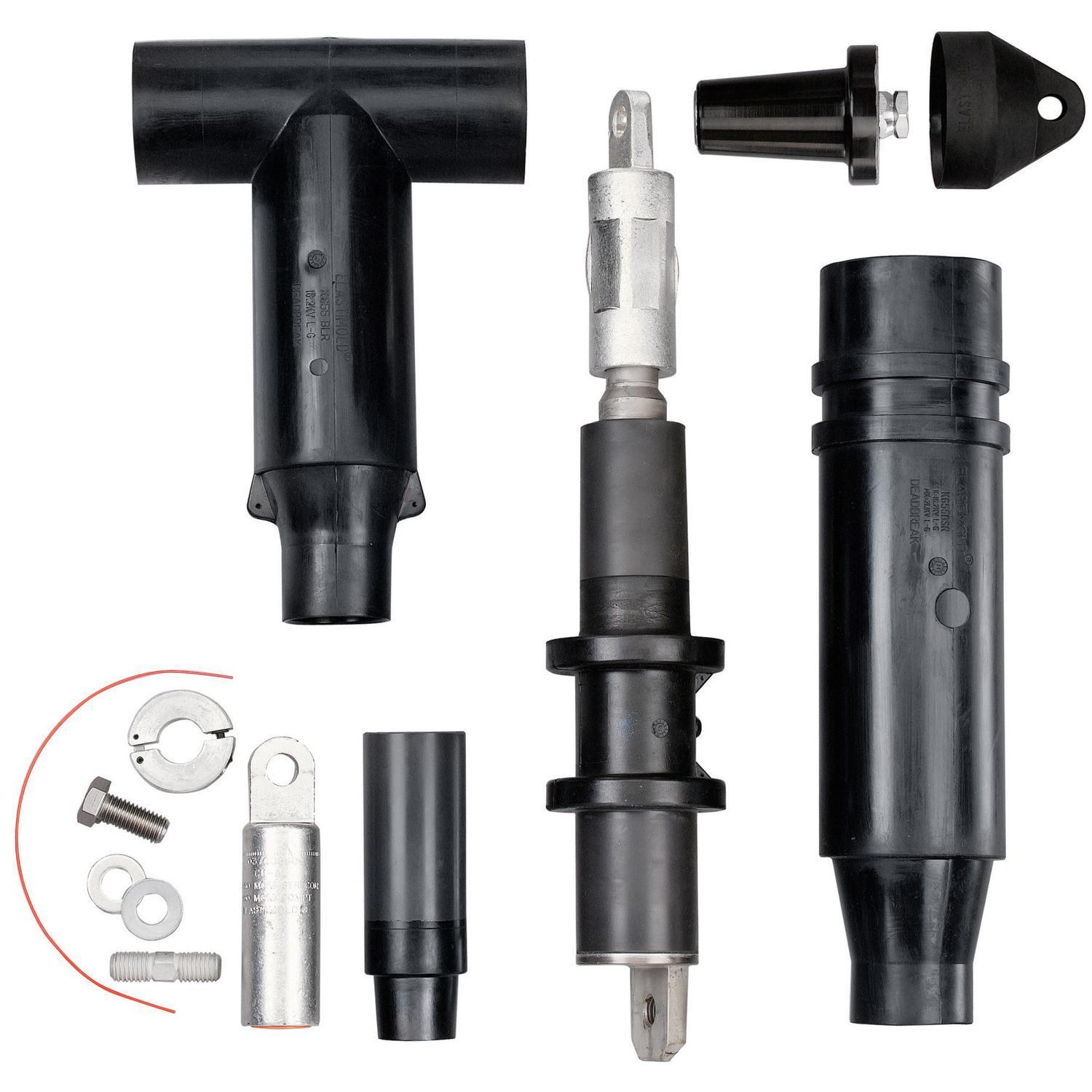

- Elbow Connector Housing, Lubricant, Stud, Replacement Housing, Insulated Plug, Cable Adapter, Connector, Adapter Retaining Ring, Installation Instructions, Crimp Chart
Elastimold®Elastimold® K655RLR-G0240 Elbow Electrical Connector, 15 to 25 kV, 600 A, 1/0 AWG Stranded/Compressed, 2 AWG Solid/Compact Conductor, 0.760 to 0.950 in Dia Insulation, EPDM Rubber
SKU #07511442354
MFG #K655RLR-G0240
