Elastimold® K655SR-K2330 K65 Straight Receptacle, 15 to 25 kV, 600 A, Compressed Stranded 500 kcmil/Compacted Solid 600 kcmil/Squared Compact 250/300 mm Conductor, 1.090 to 1.310 in Dia Insulation, EPDM Rubber
Sku #07511442320
MFG #K655SR-K2330
Attributes
| Type: | Straight |
| Voltage Rating: | 15 to 25 kV |
| Conductor Size: | Compressed Stranded 500 kcmil/Compacted Solid 600 kcmil/Squared Compact 250/300 mm |
| Series: | K65 |
| Amperage Rating: | 600 A |
| Insulation Diameter: | 1.090 to 1.310 in |
- Fully shielded, fully submersible molded rubber housing
- 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials
- Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state
- Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps

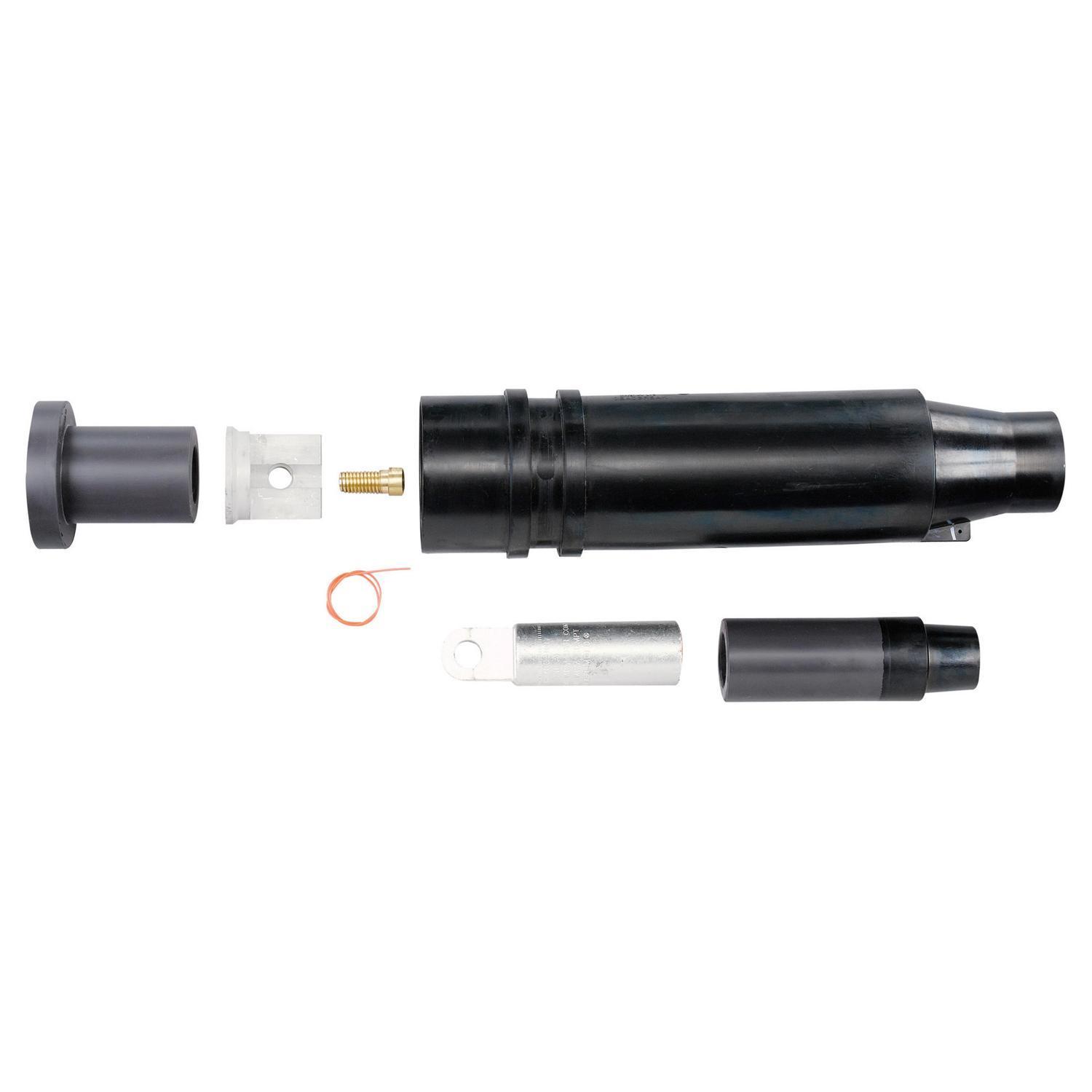

- 1 Straight Receptacle Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Straight Receptacle adapter, 1 Cable adapter, 1 Adapter Retaining Ring, 1 Hardware Prepack, Crimp Chart, Installation Instruction Sheets
- For 15/25kV, 600 Amps
- ANSI/IEEE Standard 386
