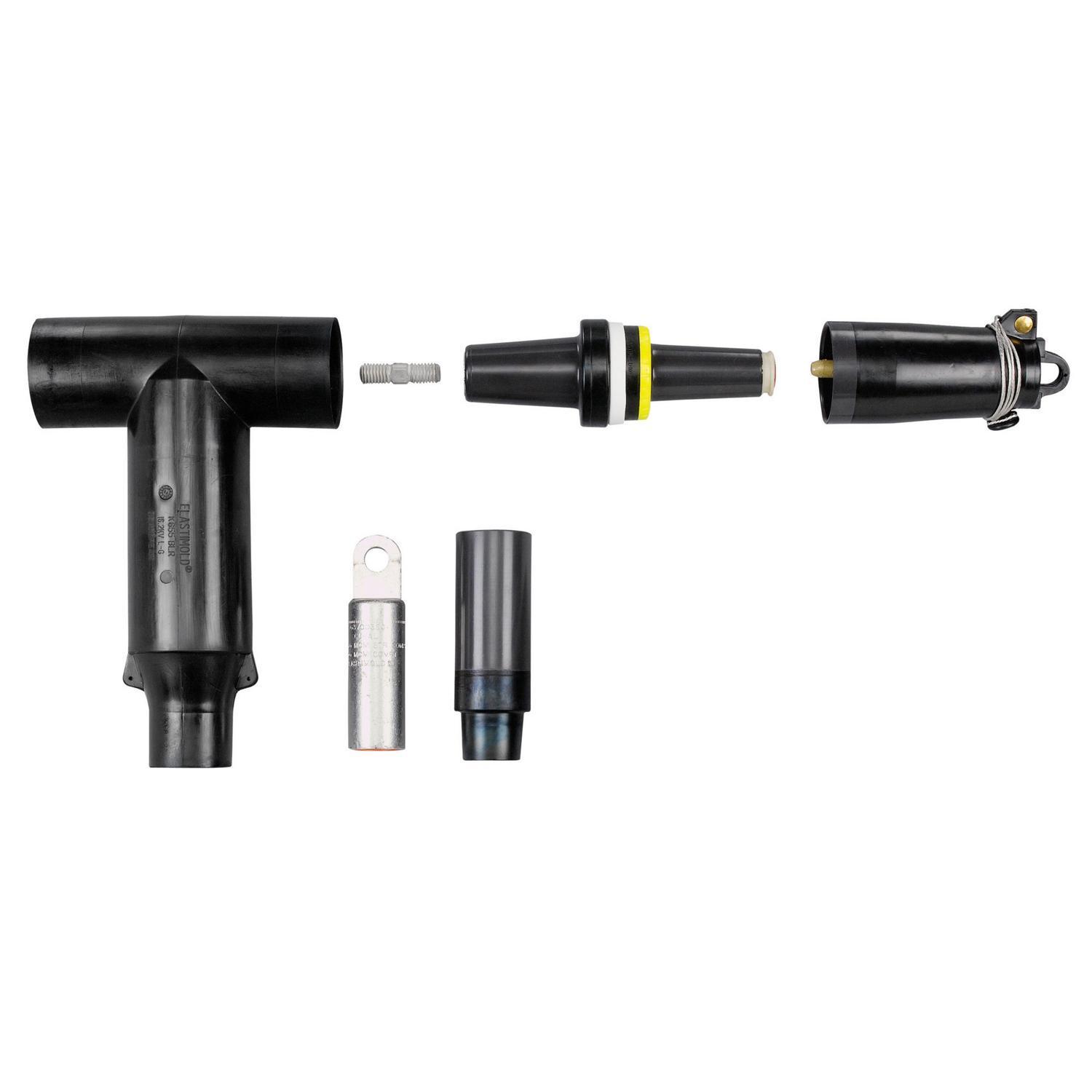

Elastimold® K655ETP-J0270-DRG-S Elbow Electrical Connector, 25 kV, 600 A, 4/0 AWG Stranded/Compressed, 250 kcmil Solid/Compact Conductor, 0.980 to 1.180 in Dia Insulation, EPDM Rubber
Sku #07511442019
MFG #K655ETP-J0270-DRG-S
Attributes
| Type: | Elbow |
| Amperage Rating: | 600 A |
| Insulation Diameter: | 0.980 to 1.180 in |
| Voltage Rating: | 25 kV |
| Conductor Size: | 4/0 AWG Stranded/Compressed, 250 kcmil Solid/Compact |
| Connector Type: | Compression |
- Includes Seal and Insulated Cap
- Cold Shrinkable Jacket Seal
- For 600 Amps, 25kV
- ANSI/IEEE Standard 386
