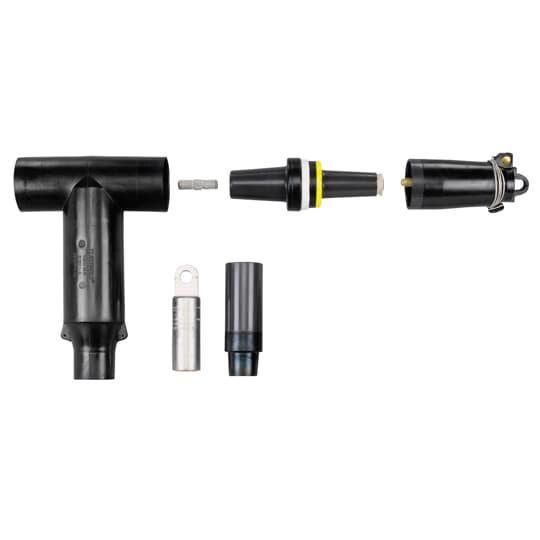

Elastimold® K655ETP-F0220-DRGSG3 Deadbreak Window-OP Elbow Connector Kit, 25 kV, 600 A, 3/0 AWG, 4/0 AWG, 35 sq-mm Conductor, 0.64 to 0.82 in Dia Insulation, EPDM Rubber
Sku #07511442018
MFG #K655ETP-F0220-DRGSG3
Attributes
| Voltage Rating: | 25 kV |
| Conductor Size: | 3/0 AWG, 4/0 AWG, 35 sq-mm |
| Insulation Diameter: | 0.64 to 0.82 in |
| Amperage Rating: | 600 A |
| Conductor Type: | Compact/Compressed/Solid/Stranded/Universal Aluminum |
| Connector Type: | Compression |
- Shrink-fit jacket seal kit with copper braid and constant force spring
- Without test point
- (1) K655BLR 600 Series Elbow Housing, (1) 650ETP Window-Op LB Elbow Tap Plug, (1) 160DRG Insulated Cap, (1) 655CA-W Cable Size Adapter, (1) 03700X Compression Lug, (1) 650SA Stud, (5) 82-08 Silicone Lubricant, (1) CC-0050 Crimp Chart, (1) IS-0249 Instruction Sheet, (1) IS-0766 Instruction Sheet, (1) IS-0892 Instruction Sheet and Cold-Shrinkable Seal
- ANSI/IEEE Standard 386
