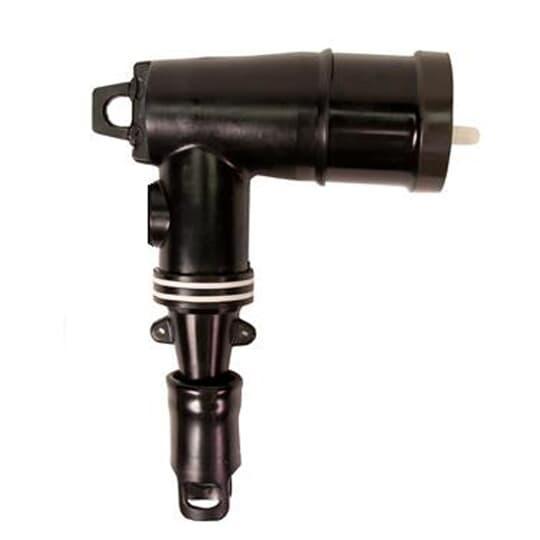

Elastimold® 161LRJS-D5260 Loadbreak Jacket Seal Elbow Connector, 15 kV, 200 A, 3/0 AWG, 4/0 AWG, 95 sq-mm Conductor, 0.89 to 1.22 in Dia Insulation, EPDM Rubber
Sku #07511441823
MFG #161LRJS-D5260
Attributes
| Voltage Rating: | 15 kV |
| Conductor Size: | 3/0 AWG, 4/0 AWG, 95 sq-mm |
| Insulation Diameter: | 0.89 to 1.22 in |
| Amperage Rating: | 200 A |
| Conductor Type: | Compact/Compressed/Solid/Stranded |
| Connector Type: | Compression |
- ANSI/IEEE Standard 386
- For connecting to and operating 15 kV class, 200 A distribution apparatus
- (1) 161BLRJS-W Elbow Connector Housing, (1) 02500XXX Bi-Metal Compression Lug, (1) 166LRF Probe, (1) 82-08 Tube of Lubricant, (1) CC-0020 Crimp Chart, (1) 350-37-3 Butyl Auto Tape and (1) IS-1379 Installation Instruction
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Provision for ground wire connection
- Provision for hot stick operation
- Wide cable range with minimum number of sizes
- Long bi-metal compression lug is standard
- Built-in cable jacket seal
- It provides a convenient method to connect/disconnect cable and equipment on power distribution systems
- Without test point
