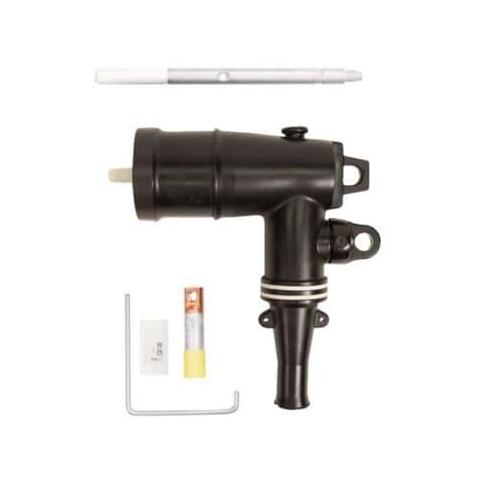

Elastimold® 162LR-B2200 Loadbreak Elbow Connector With Test Point, 15 kV, 200 A, 4 AWG, 3 AWG Conductor, 0.635 to 0.905 in Dia Insulation, EPDM Rubber
Sku #07511441495
MFG #162LR-B2200
Attributes
| Voltage Rating: | 15 kV |
| Conductor Size: | 4 AWG, 3 AWG |
| Insulation Diameter: | 0.635 to 0.905 in |
| Amperage Rating: | 200 A |
| Conductor Type: | Stranded/Compressed/Solid/Compact |
| Connector Type: | Compression |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Long bi-metal compression lug is standard
- Non-corrosive, capacitive test point
- (1) 162BLR-W Elbow Connector Housing, (1) 02500XXX Bi-Metal Compression Lug, (1) 162LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, (1) 156-7 V.D Cap Peroxide, (1) IS-1378 Installation Instruction and (1) CC-0020 Crimp Chart
- ANSI/IEEE Standard 386
