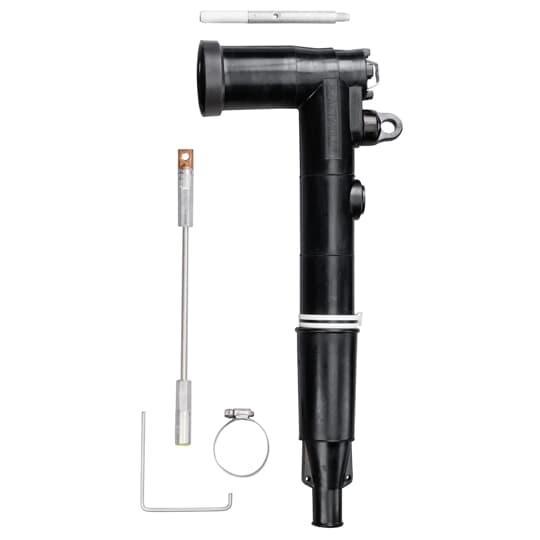

Elastimold® 168RLR-J5260-SG3 Loadbreak Replacement Elbow Connector With Test Point, 15 kV, 200 A, 3/0 AWG, 4/0 AWG Conductor, 0.98 to 1.18 in Dia Insulation, EPDM Rubber
Sku #07511441486
MFG #168RLR-J5260-SG3
Attributes
| Voltage Rating: | 15 kV |
| Conductor Size: | 3/0 AWG, 4/0 AWG |
| Insulation Diameter: | 0.98 to 1.18 in |
| Amperage Rating: | 200 A |
| Conductor Type: | Stranded/Compressed/Solid/Compact |
| Connector Type: | Compression |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured insulation, insert and jacket
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Extended length housing and compression lug - plus 10-1/2 in (266.7 mm)
- Non-corrosive, capacitive test point
- Designed for connecting to and operating 15 kV class, 95 kV BIL apparatus
- ANSI/IEEE Standard 386
- Designed for connecting to and operating 15kV Class, 95kV BIL apparatus
- (1) 168BRLR-W Elbow Connector Housing, (1) 00400XXX Bi-Metal Compression Lug, (1) 271-94 Probe Wrench, (1) 166LRF Probe, (1) 82-08 Lubricant Tube, (1) 65-27-2 Hose Clamp, (1) IS-0417 Installation Instruction and (1) CC-0060 Crimp Chart
