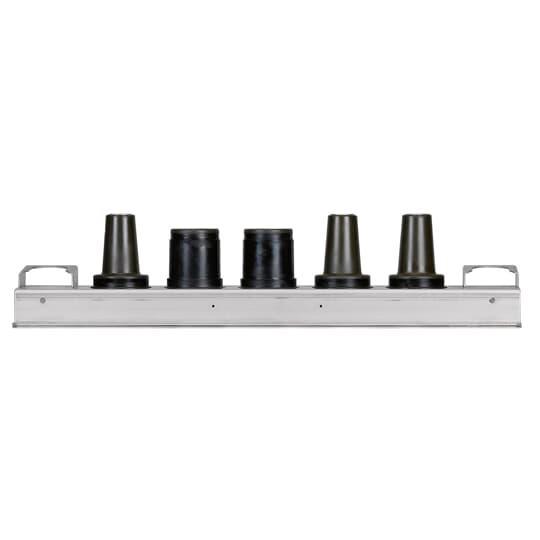

Elastimold® J5-22666-25 5-Point Molded Junction, 25/28 kV, 200/600 A, Push-In Connection, EPDM Rubber/Stainless Steel
Sku #07511441176
MFG #J5-22666-25
Attributes
| Type: | 5-Point |
| Amperage Rating: | 200/600 A |
| Specifications: | -40 to 65 deg C Temperature |
| Voltage Rating: | 25/28 kV |
| Connection Type: | Push-In |
| Material: | EPDM Rubber/Stainless Steel |
- For sectionalizing, looping, tapping and equipment bypass
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Utilizes 304 stainless steel for prevention of rusting and corrosion for brackets
- Provides mating for Elastimold® elbow connectors both 600 and 200 A
- Increases flexibility and operative ability by saving space in crucial areas
- 200 A deepwell interface on the ways 1 and 2
- 600 A bushing interface on the ways 3, 4 and 5
- No tilt mounting
- (1) 600JX-6 Mounting Hardware, (2) 82-08 Lubricants, (1) IS-0207 Installation Instruction, (1) 650PPC-01 Protective Cap, (2) 200 A Bushing Well Interfaces and (3) 600 A Bushing Interfaces
- ANSI/IEEE Standard 386
