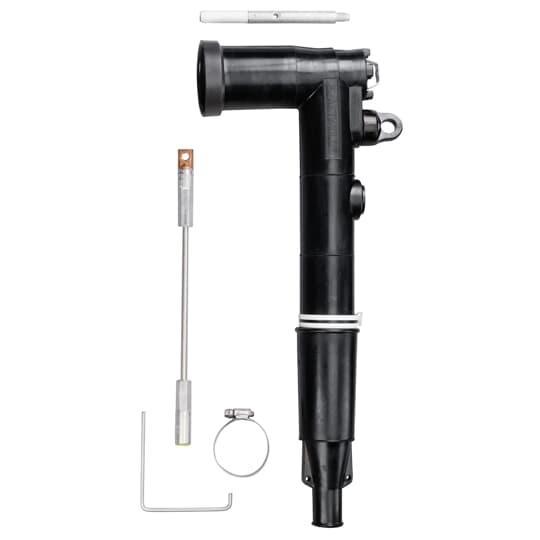

Elastimold® 168RLR-J5270 Loadbreak Replacement Elbow Connector With Test Point, 15 kV, 200 A, 4/0 AWG Stranded/Compressed, 250 kcmil Solid/Compact, 125 sq-sq-mm Compact Conductor, 0.98 to 1.18 in Dia Insulation, EPDM Rubber
Sku #07511440863
MFG #168RLR-J5270
Attributes
| Series: | 168RLR |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.98 to 1.18 in |
| Voltage Rating: | 15 kV |
| Conductor Size: | 4/0 AWG Stranded/Compressed, 250 kcmil Solid/Compact, 125 sq-sq-mm Compact |
| Material: | EPDM Rubber |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured insulation, insert and jacket
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Extended length housing and compression lug - plus 3-1/4 in
- Non-corrosive capacitive test point
- For connecting to and operating 15 kV class and 95 kV BIL apparatus
- (1) 168BRLR-W Elbow Connector Housing, (1) 00400XXX Compression Lug, (1) 166LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, (1) IS-0417 Installation Instructions and (1) CC-0060 Crimp Chart
- ANSI Specified|IEEE 386
