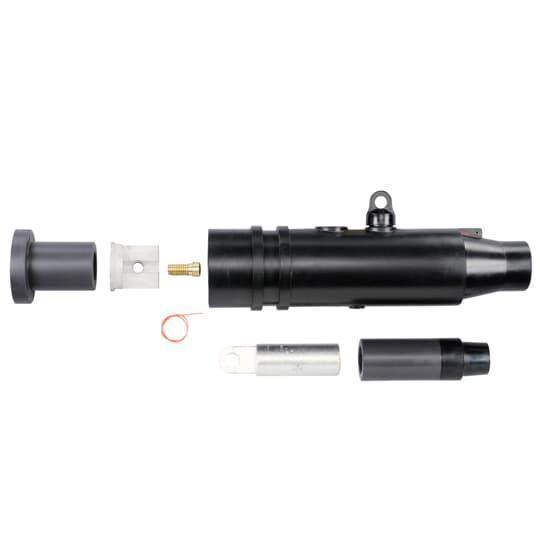

Elastimold® K656SR-N0410 600 Straight Receptacle With Test Point, 15 to 25 kV, 600 A, 1000 kcmil Stranded/Compressed, 507 sq-mm Compact Conductor, 1.515 to 1.78 in Dia Insulation, EPDM Rubber
Sku #07511440648
MFG #K656SR-N0410
Attributes
| Series: | 600 |
| Amperage Rating: | 600 A |
| Insulation Diameter: | 1.515 to 1.78 in |
| Voltage Rating: | 15 to 25 kV |
| Conductor Size: | 1000 kcmil Stranded/Compressed, 507 sq-mm Compact |
| Connection Type: | Compression |
- 15/25kV, 600 Amps
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state
- ANSI Specified|IEEE 386
- (1) K655BSR Straight Receptacle Housing, (1) 03700XXX Compression Lug, (1) Stud, (1) Insulated Plug with Cap, (3) 82-08 Lubricant Tube, (1) K650SRA Straight Receptacle Adapter, (1) 655CA-W Cable Adapter, (1) 650ARR-X Adapter Retaining Ring, (1) 650BAW Hardware Prepack, CC-0050 Crimp Chart and IS-0316 Installation Instruction Sheets
Elastimold®Elastimold® K656SR-N0410 600 Straight Receptacle With Test Point, 15 to 25 kV, 600 A, 1000 kcmil Stranded/Compressed, 507 sq-mm Compact Conductor, 1.515 to 1.78 in Dia Insulation, EPDM Rubber
SKU #07511440648
MFG #K656SR-N0410
