Elastimold® K656YSR-H0230 Straight Receptacle With Test Point, 15 to 25 kV, 600 A, 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact, 42.41 sq-mm Compact Conductor, 0.85 to 1.05 in Dia Insulation, EPDM Rubber
Sku #07511440325
MFG #K656YSR-H0230
Attributes
| Voltage Rating: | 15 to 25 kV |
| Conductor Size: | 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact, 42.41 sq-mm Compact |
| Connection Type: | Compression |
| Amperage Rating: | 600 A |
| Insulation Diameter: | 0.85 to 1.05 in |
| Suitable For Use With: | Deadbreak Connection |

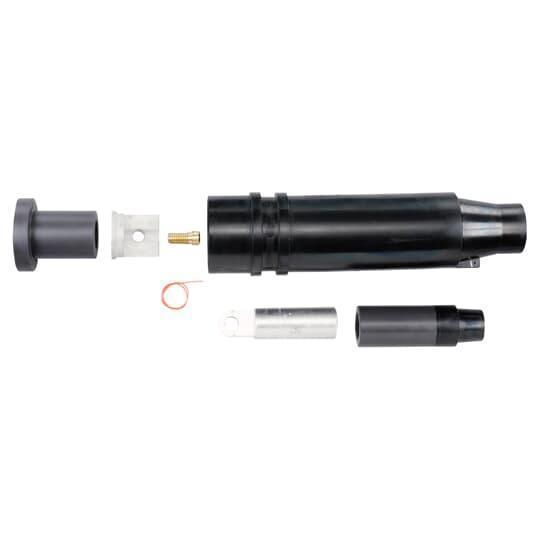

- (1) K656BSR Straight Receptacle Housing, (1) 655CA-W Cable Adapter, (1) 03700XXX Compression Lug, (1) 650ARR-X Adapter Retaining Ring, 650BAW Bolts and Washers, (1) CC-0050 Crimp Chart and IS-0388 Installation Instructions
- 15/25kV, 600 Amps
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Can be easily connected or disconnected in a deenergized state
- Non-corrosive, capacitive test point
- ANSI Specified|IEEE 386
