Elastimold® 755ETP-M0330-SG3 Window-Op Connector, 35 kV, 600 A, 500 kcmil Stranded/Compressed, 600 kcmil Solid/Compact, 250 to 300 sq-mm Compact Conductor, 1.37 to 1.63 in Dia Cable, EPDM Rubber
Sku #07511440323
MFG #755ETP-M0330-SG3
Attributes
| Voltage Rating: | 35 kV |
| Conductor Size: | 500 kcmil Stranded/Compressed, 600 kcmil Solid/Compact, 250 to 300 sq-mm Compact |
| Connection Type: | Compression |
| Amperage Rating: | 600 A |
| Cable Diameter: | 1.37 to 1.63 in |
| Specifications: | -40 to 65 deg C |
- Shrink-fit jacket seal kit with copper braid and constant force spring
- Without test point
- 600 Amps, 35kV

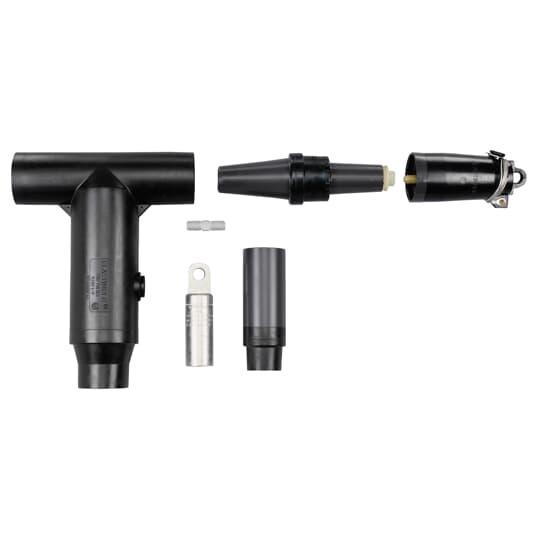

- (1) K655BCETP Elbow Housing, (1) 750ETP Elbow Tap Plug, (1) 375DRG Insulated Cap, (1) 755CA-W Cable Size Adapter, (1) 03700X Compression Lug, (1) 750SA Stud, (5) 82-08 Lubricant Tube, (1) IS-0244 Instruction Sheet and (1) CC-0050 Crimp Chart
- ANSI Specified|IEEE 386
