Elastimold® K656CH-G0230 Deadbreak Separable H-Joint Assembly With Test Point, 15 to 25 kV, 600 A, 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact, 42.41 sq-mm Compact Conductor, 0.76 to 0.95 in Dia Insulation, EPDM Rubber
Sku #07511440262
MFG #K656CH-G0230
Attributes
| Voltage Rating: | 15 to 25 kV |
| Conductor Size: | 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact, 42.41 sq-mm Compact |
| Connection Type: | Compression |
| Amperage Rating: | 600 A |
| Insulation Diameter: | 0.76 to 0.95 in |
| Specifications: | -40 to 65 deg C |
- Fully shielded, fully submersible and 100% peroxide-cured EPDM molded rubber
- Reusable components reduce inventory and other costs

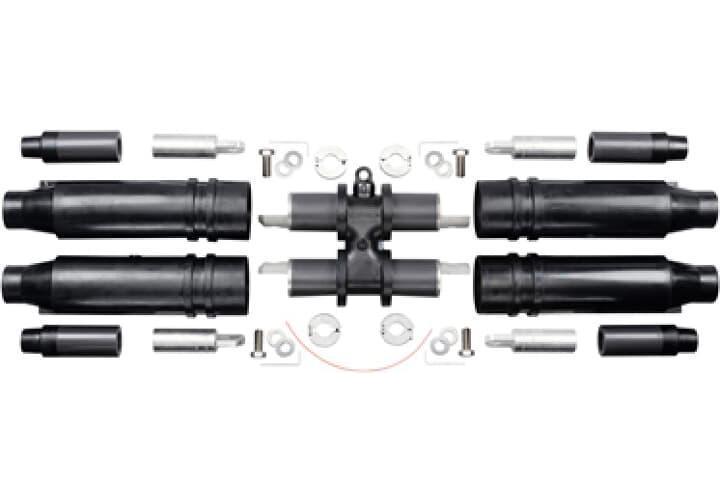

- (1) K656CH-4-Way Busbar, (2) 82-08 Lubricant Tube, (4) K655YSR Straight Receptacles, (4) 03700XXX Compression Lugs, (4) 655CA-W Cable Adapters, (4) 650ARR-X Adapter Retaining Rings, (4) 650BAW Bolts/Washers, IS-1074 Installation Instructions
- For small vaults and manholes
- ANSI Specified|IEEE 386
