Elastimold® K655ETP-M0380-DRG-S Window-Op Elbow Connector, 25 kV, 600 A, 700 to 750 kcmil Stranded/Compressed, 900 kcmil Solid/Compact Conductor, 1.37 to 1.63 in Dia Cable, EPDM Rubber
Sku #07511440187
MFG #K655ETP-M0380-DRG-S
Attributes
| Voltage Rating: | 25 kV |
| Conductor Size: | 700 to 750 kcmil Stranded/Compressed, 900 kcmil Solid/Compact |
| Connection Type: | Compression |
| Amperage Rating: | 600 A |
| Cable Diameter: | 1.37 to 1.63 in |
| Specifications: | -40 to 65 deg C |
- Provides an external visible break by hotstick removal of the elbow
- Shrink-fit jacket seal kit
- Without test point
- 600 Amps, 25kV

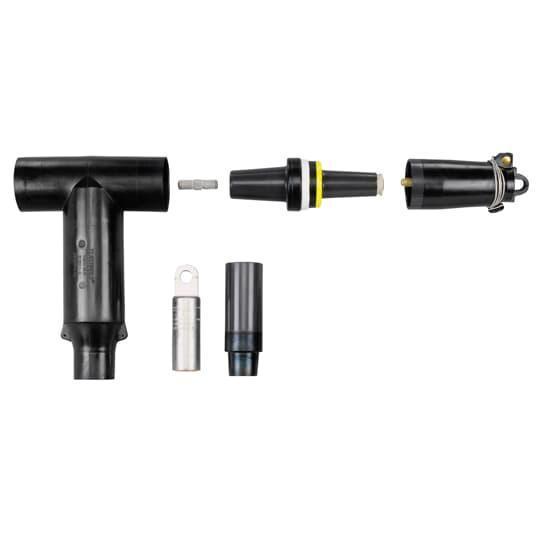

- (1) 755BLR Elbow Housing, (1) 750ETP Tap Plug, (1) 375DRG Insulated Cap, (1) 755CA-W Cable Size Adapter, (1) 03700X Compression Lug, (1) 750SA Stud, (5) 82-08 Lubricant Tube, (1) CC-0050 Crimp Chart, (1) IS-0244 Instruction Sheet and Sealing Kit
- ANSI Specified|IEEE 386
