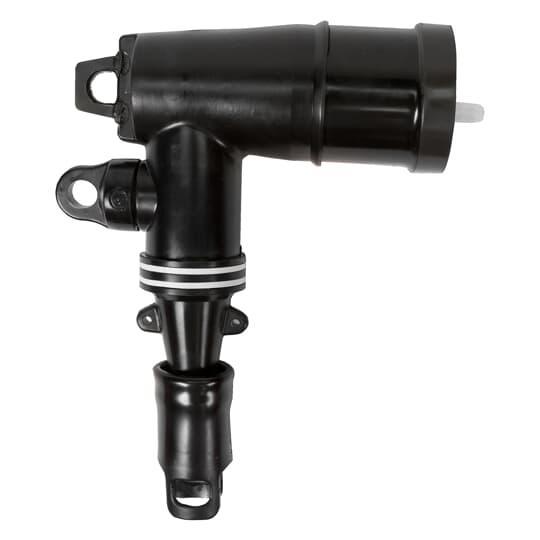

Elastimold® 162LRJSB5240-CS782C Loadbreak Elbow Connector With Test Point, 15 kV, 200 A, 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact Conductor, 0.635 to 0.905 in Dia Insulation, EPDM Rubber
Sku #07511439251
MFG #162LRJSB5240-CS782C
Attributes
| Series: | 162LR |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.635 to 0.905 in |
| Voltage Rating: | 15 kV |
| Conductor Size: | 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact |
| Material: | EPDM Rubber |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured insulation, insert and jacket
- Provision for hot stick operation
- Provision for ground wire connection
- Non-corrosive capacitive test point
- Contact ring adapter
- (1) 162BLR-W Elbow Connector Housing with Jacket Seal, (1) 02500XXX Copper Compression Lug, (1) 162LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, (1) CC-0020 Crimp Chart, (1) 156-7 Peroxide VD Cap and (1) IS-1378 Installation Instructions
- ANSI Specified|IEEE 386
