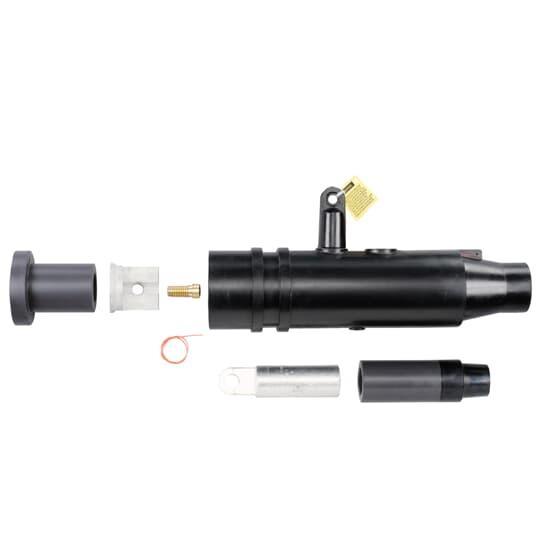

Elastimold® K655DSR-N0380 Direct Test Straight Receptacle, 25 kV, 600 A, 700 to 750 kcmil Stranded/Compressed, 800 to 900 kcmil Solid/Compact, 355 sq-mm Compact Conductor, 1.515 to 1.78 in Dia Insulation, EPDM Rubber
Sku #07511438780
MFG #K655DSR-N0380
Attributes
| Voltage Rating: | 25 kV |
| Conductor Size: | 700 to 750 kcmil Stranded/Compressed, 800 to 900 kcmil Solid/Compact, 355 sq-mm Compact |
| Connection Type: | Compression |
| Amperage Rating: | 600 A |
| Insulation Diameter: | 1.515 to 1.78 in |
| Suitable For Use With: | Deadbreak Connection |
- K655BSR Straight Receptacle Housing, K650SRA Straight Receptacle Adapter, 655CA-W Cable Adapter, 03700XXX Compression Lug, 650ARR-X Adapter Retaining Ring, 650BAW Hardware Package, CC-0050 Crimp Chart and IS-0316 Instruction Sheet
- ANSI Specified|IEEE 386
