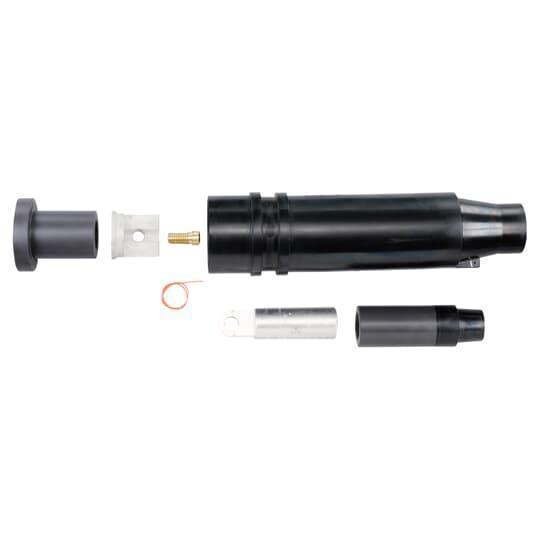

Elastimold® K655SR-L-0330-SG3 Straight Receptacle, 15 to 25 kV, 600 A, 500 kcmil Stranded/Compressed, 600 kcmil Solid/Compact, 253 sq-mm Compact Conductor, 1.18 to 1.465 in Dia Insulation, EPDM Rubber
Sku #07511438447
MFG #K655SR-L-0330-SG3
Attributes
| Voltage Rating: | 15 to 25 kV |
| Conductor Size: | 500 kcmil Stranded/Compressed, 600 kcmil Solid/Compact, 253 sq-mm Compact |
| Connection Type: | Compression |
| Amperage Rating: | 600 A |
| Insulation Diameter: | 1.18 to 1.465 in |
| Suitable For Use With: | Deadbreak Connection |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Can be easily connected or disconnected in a deenergized state
- SG3 sealing kit - cold shrinkable seal with copper braid and constant force spring
- Without test point
- ANSI Specified|IEEE 386
- (1) K655BSR Straight Receptacle Housing, (1) 03700XXX Compression Lug, (1) Stud, (1) Insulated Plug with Cap, (3) 82-08 Lubricant Tube, (1) K650SRA Straight Receptacle Adapter, (1) 655CA-W Cable Adapter, (1) 650ARR-X Adapter Retaining Ring, (1) 650BAW Hardware Prepack, CC-0050 Crimp Chart and IS-0316 Installation Instruction Sheets
