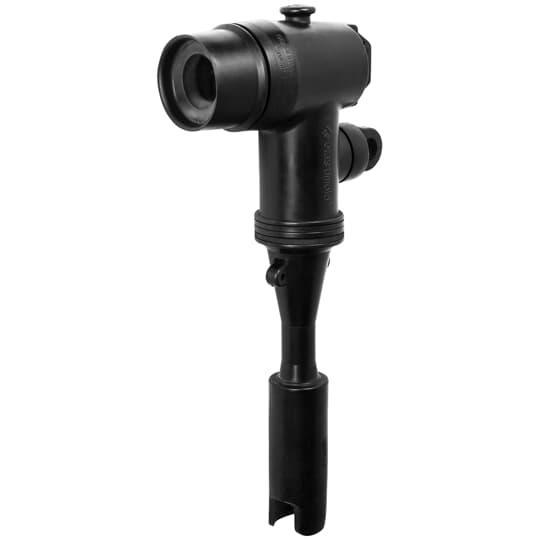

Elastimold® 252LRJS-B5220 Deadbreak Elbow Connector With Test Point, 15 to 25 kV, 200 A, 2 AWG Stranded/Compressed, 1 AWG Solid/Compact, 35 sq-mm Compact Conductor, 16.13 to 22.9 mm Dia Insulation, EPDM Rubber
Sku #07511436715
MFG #252LRJS-B5220
Attributes
| Series: | 252LRJS |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 16.13 to 22.9 mm |
| Voltage Rating: | 15 to 25 kV |
| Conductor Size: | 2 AWG Stranded/Compressed, 1 AWG Solid/Compact, 35 sq-mm Compact |
| Connector Type: | Compression |
- Has provisions for de-energized operation using standard hotstick tools
- 15/25kV, 200 Amp Deadbreak Connection
- Elbow Connector Housing with Built-In Jacket Seal, Compression Lug, Probe, Probe Wrench, Bail Assembly, Lubricant, Installation Instructions, Crimp Chart and Peroxide VD Cap
- ANSI Specified|IEEE 386
