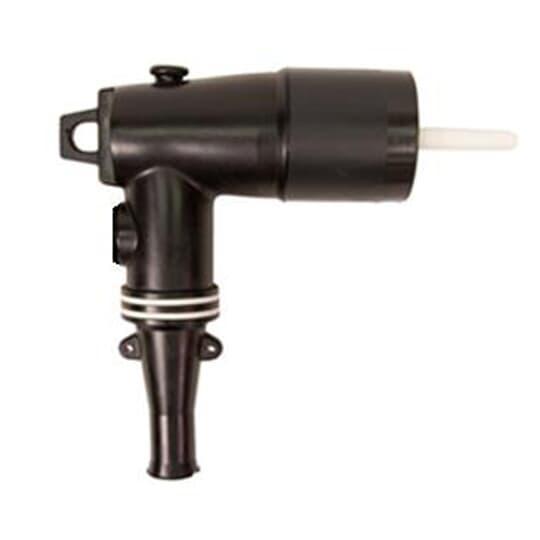

Elastimold® 261LR-B5220 Loadbreak Elbow Connector, 25 to 28 kV, 200 A, 2 AWG Stranded/Compressed, 1 AWG Solid/Compact, 35 sq-mm Compact Conductor, 0.635 to 0.905 in Dia Insulation, EPDM Rubber
Sku #07511435089
MFG #261LR-B5220
Attributes
| Series: | 261LR |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.635 to 0.905 in |
| Voltage Rating: | 25 to 28 kV |
| Conductor Size: | 2 AWG Stranded/Compressed, 1 AWG Solid/Compact, 35 sq-mm Compact |
| Connector Type: | Compression |
- For connecting to and operating 25/28 kV class, 200 A distribution apparatus
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Long bi-metal compression lug is standard
- Without test point
- (1) 261BLR-W Elbow Housing, (1) 02500XXX Compression Lug, (1) 274LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, (1) CC-0020 Crimp Chart and (1) IS-1380 Installation Instruction Sheet
- ANSI Specified|IEEE 386
