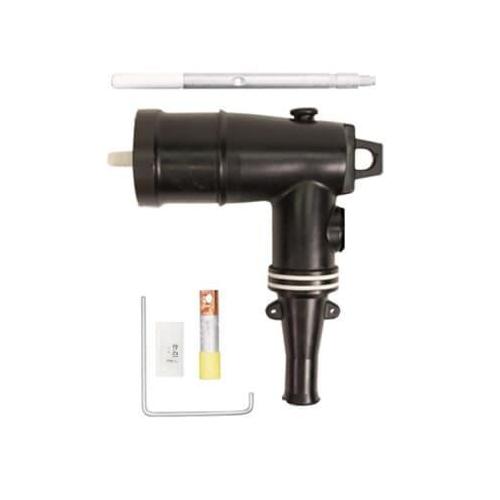

Elastimold® 161LR-C5270-S Loadbreak Elbow Connector, 15 kV, 200 A, 4/0 AWG Stranded/Compressed, 250 kcmil Solid/Compact, 125 sq-mm Compact Conductor, 0.805 to 1.06 in Dia Insulation, EPDM Rubber
Sku #07511434895
MFG #161LR-C5270-S
Attributes
| Series: | 161LR |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.805 to 1.06 in |
| Voltage Rating: | 15 kV |
| Conductor Size: | 4/0 AWG Stranded/Compressed, 250 kcmil Solid/Compact, 125 sq-mm Compact |
| Material: | EPDM Rubber |
- ANSI Specified|IEEE 386
- (1) 161BLR-W Elbow Connector Housing, (1) 02500XXX Bi-Metal Compression Lug, (1) 162LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, Cold-Shrinkable Jacket Seal, (1) CC-0020 Crimp Chart and (1) IS-1378 Installation Instructions
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Without test point
- For connecting to and operating 15 kV class and 200 A distribution apparatus
