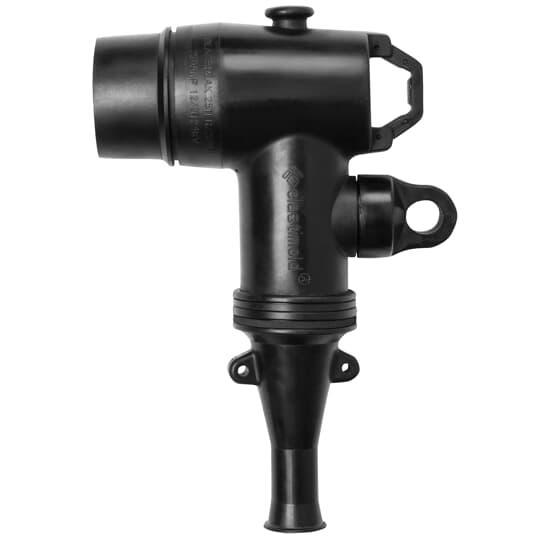

Elastimold® 252LR-B5220-S Deadbreak Elbow Connector With Test Point, 15 to 25 kV, 200 A, 2 AWG Stranded/Compressed, 1 AWG Solid/Compact, 35 sq-mm Compact Conductor, 16.13 to 22.9 mm Dia Insulation, EPDM Rubber
Sku #07511434580
MFG #252LR-B5220-S
Attributes
| Series: | 252LR |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 16.13 to 22.9 mm |
| Voltage Rating: | 15 to 25 kV |
| Conductor Size: | 2 AWG Stranded/Compressed, 1 AWG Solid/Compact, 35 sq-mm Compact |
| Connector Type: | Compression |
- Fully shielded, fully submersible molded rubber housing
- Provision for hot stick operation
- Non-corrosive capacitive test point
- Sealing and grounding
- 252BLR-W Elbow Connector Housing, 02702XXX Compression Lug, 252LRF Probe, 650-14-3TN Probe Wrench, 150BA Bail Assembly, 82-08 Lubricant Tube, Cold-Shrinkable Jacket Seal, IS-1626/IS-1627 Installation Instructions, CC-0024 Crimp Chart and 156-7 Peroxide VD Cap
- ANSI Specified|IEEE 386
