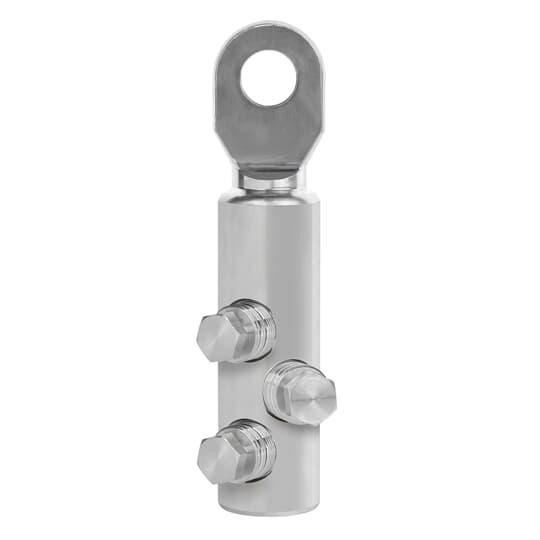

Elastimold® EACT-0500 Shearbolt Connector, For Use With 600/900 A Elbow Connectors, Vault Stretcher and Straight Receptacles, Stranded Aluminum and Copper Conductors, 15 to 35 kV, 600 to 900 A, 4/0 AWG Stranded/Compressed, 500 kcmil Solid/Compact, Aluminum
Sku #07511434356
MFG #EACT-0500
Attributes
| Suitable For Use With: | 600/900 A Elbow Connectors, Vault Stretcher and Straight Receptacles, Stranded Aluminum and Copper Conductors |
| Material: | Aluminum |
| Dimensions: | 4.67 in L x 1.3 in W |
| Specifications: | 15 to 35 kV, 600 to 900 A, 4/0 AWG Stranded/Compressed, 500 kcmil Solid/Compact |
| Finish: | Tin Plated |
| Country of Origin: | DE |
- Installs using a standard wrench and socket
- Special design with grooves for an optimal contact
- Designed and tested for use on both aluminum and copper conductors
- IEEE Standard 386
- (2) M18 x 11 Round Bottom Screws with 1/2 in Hex Head
