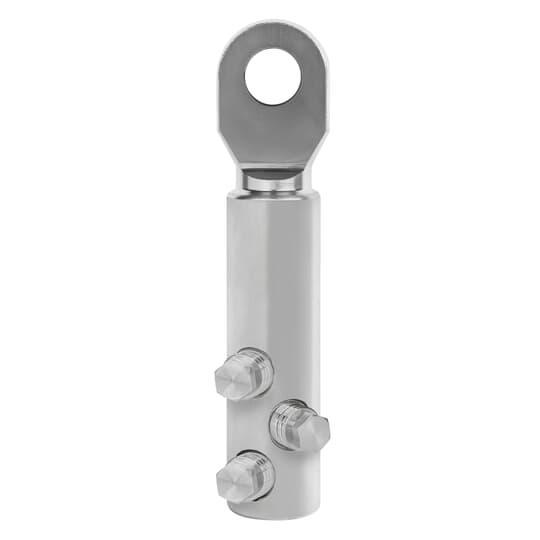

Elastimold® EACT-0300 Shearbolt Connector, For Use With 600/900 A Elbow Connectors, Vault Stretcher and Straight Receptacles, Stranded Aluminum and Copper Conductors, 15 to 35 kV, 600 to 900 A, 2 AWG Stranded/Compressed, 300 kcmil Solid/Compact, Aluminum
Sku #07511434355
MFG #EACT-0300
Attributes
| Suitable For Use With: | 600/900 A Elbow Connectors, Vault Stretcher and Straight Receptacles, Stranded Aluminum and Copper Conductors |
| Material: | Aluminum |
| Dimensions: | 4.13 in L x 1.18 in W |
| Specifications: | 15 to 35 kV, 600 to 900 A, 2 AWG Stranded/Compressed, 300 kcmil Solid/Compact |
| Finish: | Tin Plated |
| Country of Origin: | DE |
- (2) M14 x 11 Round-Bottom Screws with 3/8 Hex Head
- Installs using a standard wrench and socket
- Special design with grooves for an optimal contact
- Designed and tested for use on both aluminum and copper conductors
- IEEE Standard 386
Elastimold®Elastimold® EACT-0300 Shearbolt Connector, For Use With 600/900 A Elbow Connectors, Vault Stretcher and Straight Receptacles, Stranded Aluminum and Copper Conductors, 15 to 35 kV, 600 to 900 A, 2 AWG Stranded/Compressed, 300 kcmil Solid/Compact, Aluminum
SKU #07511434355
MFG #EACT-0300
