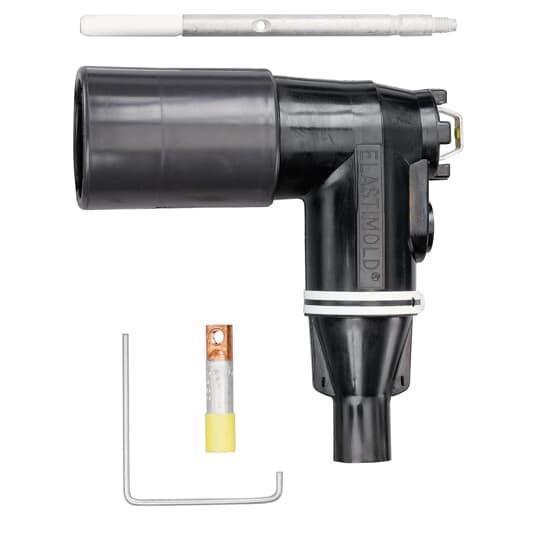

Elastimold® 375LR-K5260-SG3 Loadbreak Elbow Connector, 35 kV, 200 A, 3/0 AWG Stranded/Compressed, 4/0 AWG Solid/Compact, 95 sq-mm Compact Conductor, 1.09 to 1.31 in Dia Insulation, EPDM Rubber
Sku #07511433233
MFG #375LR-K5260-SG3
Attributes
| Series: | 375LR |
| Amperage Rating: | 200 A |
| Conductor Type: | Copper |
| Voltage Rating: | 35 kV |
| Conductor Size: | 3/0 AWG Stranded/Compressed, 4/0 AWG Solid/Compact, 95 sq-mm Compact |
| Insulation Diameter: | 1.09 to 1.31 in |
- (1) 375BLR-W Elbow Connector Housing, (1) 02500XXX Compression Lug, (1) 375LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, Cold-Shrinkable Seal, (1) CC-0024 Crimp Chart and (1) IS-0359 Installation Instruction Sheet
- Cold-shrinkable seal with copper braid and constant force spring
- Without test point
- ANSI Specified|IEEE 386
- 35kV, 200 Amps
