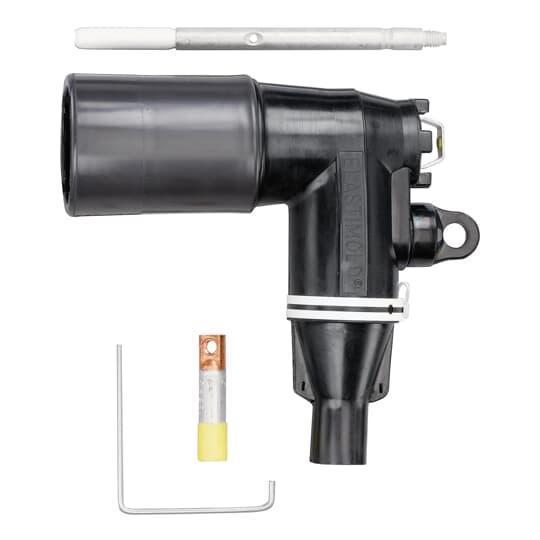

Elastimold® 376LR-K2240 Loadbreak Elbow Connector With Test Point, 35 kV, 200 A, 1/0 AWG, 2/0 AWG Conductor, 1.09 to 1.31 in Dia Insulation, EPDM Rubber
Sku #07511432909
MFG #376LR-K2240
Attributes
| Series: | 376LR |
| Amperage Rating: | 200 A |
| Conductor Type: | Compact/Compressed/Solid/Stranded |
| Voltage Rating: | 35 kV |
| Conductor Size: | 1/0 AWG, 2/0 AWG |
| Insulation Diameter: | 1.09 to 1.31 in |
- For connecting to and operating 35 kV class, 200 A distribution apparatus, it provides a convenient method to connect or disconnect systems
- Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube Lubricant, Crimp Chart, V.D. Cap-Peroxide and Installation Instruction Sheet
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of cable sizes
- Long bi-metal compression lug is standard
- Non-corrosive capacitive voltage test point
- 1/0 AWG stranded, 2/0 AWG solid
- ANSI/IEEE 386
