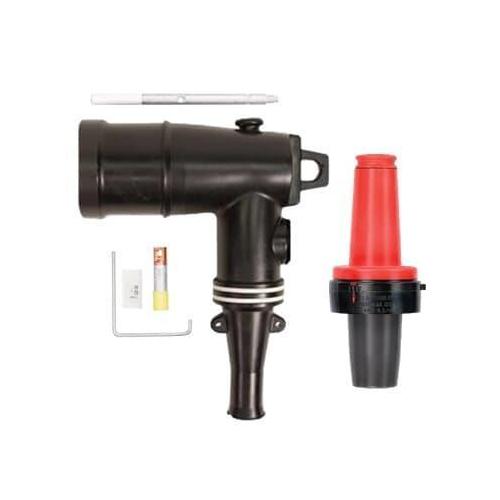

Elastimold® 161A4-B-5240 Loadbreak Elbow Connector, 15 kV, 200 A, 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact Conductor, 0.635 to 0.905 in Dia Insulation, EPDM Rubber
Sku #07511431748
MFG #161A4-B-5240
Attributes
| Series: | 161A4 |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.635 to 0.905 in |
| Voltage Rating: | 15 kV |
| Conductor Size: | 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact |
| Connector Type: | Compression |
- Provision for hot stick operation
- Provision for ground wire connection
- Without test point
- 161BLR-W Elbow Connector Housing, 02500XXX Compression Lug, 162LRF Probe, 271-94 Probe Wrench, 1601A4 Bushing Insert, 1601-APC-1 Protective Shipping Cap, 82-08 Lubricant Tube, CC-0020 Crimp Chart, Peroxid VD Cape and IS-1378 Installation Instruction Sheets
- ANSI Specified|IEEE 386
