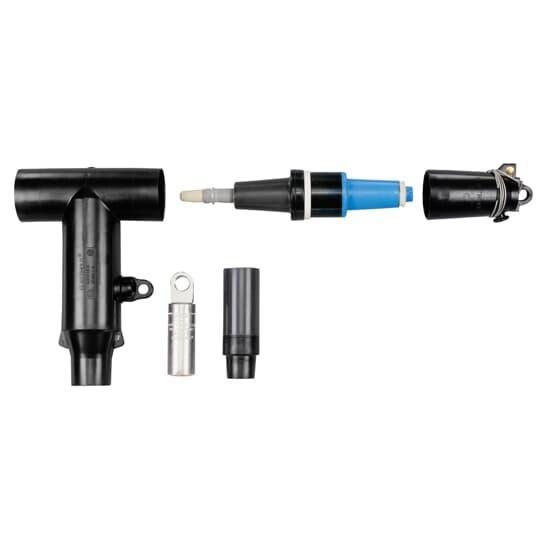

Elastimold® K656LRTP-H0270-DRG Stick-Op Reducing Tap Plug Connector With Test Point and Insulated Cap, 15 kV, 200 to 600 A, 4/0 AWG Stranded/Compressed, 250 kcmil Solid/Compact, 125 sq-mm Compact Conductor, 0.85 to 1.05 in Dia Cable, EPDM Rubber
Sku #07511431181
MFG #K656LRTP-H0270-DRG
Attributes
| Voltage Rating: | 15 kV |
| Conductor Size: | 4/0 AWG Stranded/Compressed, 250 kcmil Solid/Compact, 125 sq-mm Compact |
| Specifications: | -40 to 65 deg C |
| Amperage Rating: | 200 to 600 A |
| Cable Diameter: | 0.85 to 1.05 in |
| Material: | EPDM Rubber |
- (1) K656BLR 600 Series Elbow Housing, (1) K650LRTPA2 STICK-OP LB Reducing Tap Plug, (1) 273DRG Insulated Cap, (1) 655CA-W Cable Size Adapter, (1) 03600X Compression Lug, (4) 82-08 Silicone Lubricant Tube, (1) IS-0187/IS-0320/IS-0894 Instruction Sheet and (1) CC-0050 Crimp Chart
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Can be easily connected or disconnected using standard safety hand tools and equipment in a de-energized conditions
- Surge arrestors and fault current indicators can be installed, non-corrosive capacitive test point
- Connect 600 A Interface to 200 A Loadbreak Tap
- ANSI Specified|IEEE 386
