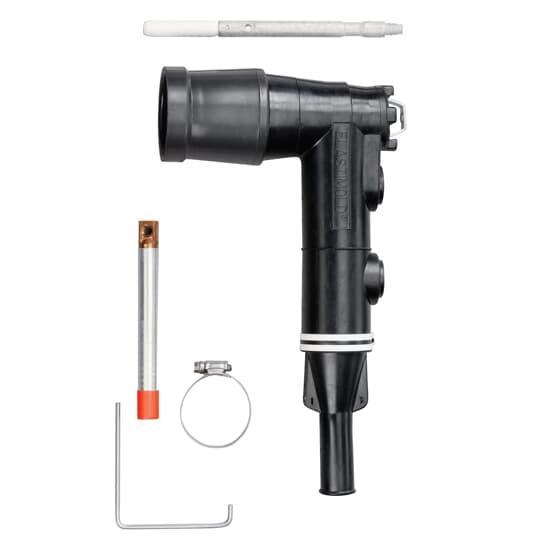

Elastimold® 273ELR-88110-5270 Extended Length Insulated Loadbreak Repair Elbow Connector, 25 kV, 200 A, 4/0 AWG to 250 kcmil Conductor, 0.88 to 1.1 in Dia Insulation, EPDM Rubber
Sku #07511430754
MFG #273ELR-88110-5270
Attributes
| Type: | Extended Length Insulated |
| Amperage Rating: | 200 A |
| Conductor Type: | Compressed Stranded/Compacted Solid Bi-Metal |
| Voltage Rating: | 25 kV |
| Conductor Size: | 4/0 AWG to 250 kcmil |
| Insulation Diameter: | 0.88 to 1.1 in |
- For connecting to and operating 15 kV Class, 95 kV BIL distribution apparatus
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Long bi-metal compression lug is standard
- -40 to 65 deg C temperature rating
- Repair elbow has extended length contact and elbow housing resulting in a net gain of 3-1/4 in length
- No sealing kit
- Without test point
- Includes elbow connector housing, compression lug, probe, probe wrench, tube of lubricant, installation instructions, crimp chart
- ANSI Specified|IEEE 386
- (1) Elbow Connector Housing, (1) Compression Lug, (1) Probe, (1) Probe Wrench, (1) Tube of Lubricant, (1) Installation Instructions and (1) Crimp Chart
