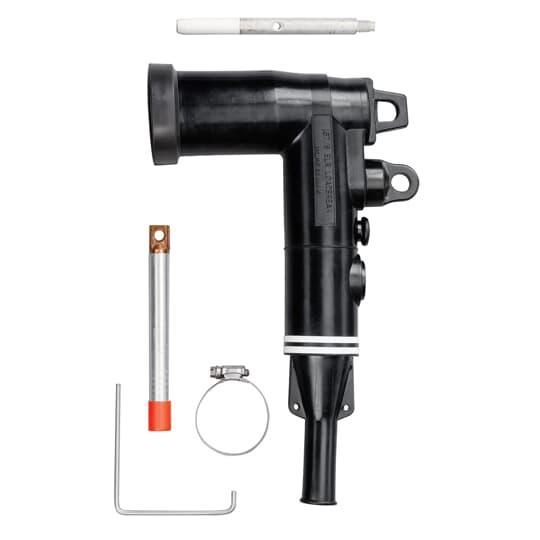

Elastimold® 168ELR-6689-5230 Extended Length Insulated Loadbreak Repair Elbow Connector With Test Point, 15 kV, 200 A, 1 to 1/0 AWG Conductor, 0.665 to 0.895 in Dia Insulation, EPDM Rubber
Sku #07511430561
MFG #168ELR-6689-5230
Attributes
| Type: | Extended Length Insulated |
| Amperage Rating: | 200 A |
| Conductor Type: | Compressed Stranded/Compacted Solid Bi-Metal |
| Voltage Rating: | 15 kV |
| Conductor Size: | 1 to 1/0 AWG |
| Insulation Diameter: | 0.665 to 0.895 in |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide cured insulation, insert and jacket
- Provision for hot stick operation, provision for ground wire connection
- Wide cable range with minimum number of sizes
- -40 to 65 deg C temperature rating
- Extended length housing and compression lug plus 3-1/4 in
- Includes elbow connector housing, compression lug, probe, probe wrench, tube of lubricant, installation instructions, crimp chart and V.D. cap-peroxide
- For connecting to and operating 15 kV Class, 95 kV BIL distribution apparatus
- ANSI Specified|IEEE 386
- (1) Elbow Connector Housing, (1) Compression Lug, (1) Probe, (1) Probe Wrench, (1) Tube of Lubricant, (1) Installation Instructions, (1) Crimp Chart and V.D. Cap-Peroxide
