Elastimold® K656RLR-K0330-S Deadbreak Replacement Elbow Connector With Test Point, 15 to 25 kV, 600 A, 500 kcmil Stranded/Compressed, 600 kcmil Solid/Compact, 250 to 300 sq-mm Compact Conductor, 1.09 to 1.31 in Dia Insulation, EPDM Rubber
Sku #07511429911
MFG #K656RLR-K0330-S
Attributes
| Series: | K656RLR |
| Amperage Rating: | 600 A |
| Conductor Type: | Aluminum |
| Voltage Rating: | 15 to 25 kV |
| Conductor Size: | 500 kcmil Stranded/Compressed, 600 kcmil Solid/Compact, 250 to 300 sq-mm Compact |
| Insulation Diameter: | 1.09 to 1.31 in |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state
- Extends connection for shorter cable application
- Non-corrosive capacitive test point
- For used where cable has been severed and is not long enough to reach the Elbow
- ANSI Specified|IEEE 386

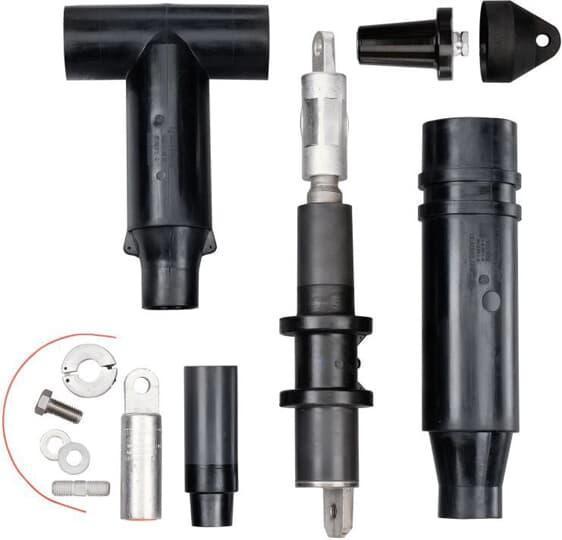

- K655BLR Elbow Connector Housing, 82-08 Lubricant Tube, 650SA Stud, K655BRLR Replacement Housing, K650BIP Insulated Plug, 655CA-W Cable Adapter, Cold-Shrinkable Jacket Seal, 03700XXX Connector, 650ARR-X Adapter Retaining Ring, Installation Instructions and Crimp Chart
