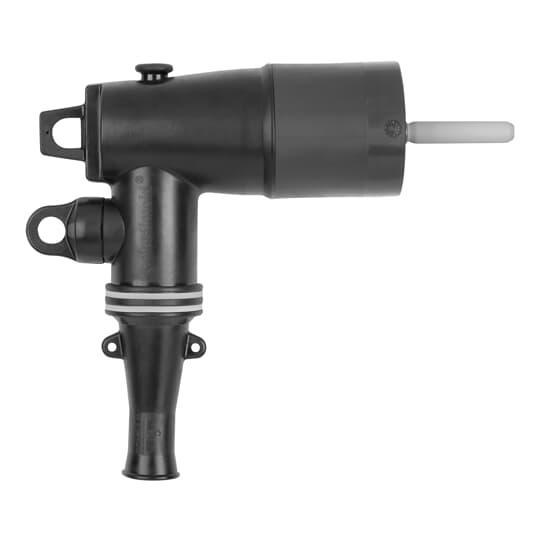

Elastimold® 262LR-C5210 Loadbreak Elbow Connector With Test Point, 28 kV, 200 A, 2 AWG Solid/Compact Conductor, 0.805 to 1.06 in Dia Insulation, EPDM Rubber
Sku #07511428384
MFG #262LR-C5210
Attributes
| Series: | 262LR |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.805 to 1.06 in |
| Voltage Rating: | 28 kV |
| Conductor Size: | 2 AWG Solid/Compact |
| Material: | EPDM Rubber |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Long bi-metal compression lug is standard
- Non-corrosive capacitive test point
- (1) 262BLR-W Elbow Connector Housing, (1) 02500XXX Compression Lug, (1) 274LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, (1) CC-0020 Crimp Chart, (1) Peroxide VD Cap and (1) IS-1380 Installation Instructions sheet
- ANSI Specified|IEEE 386
