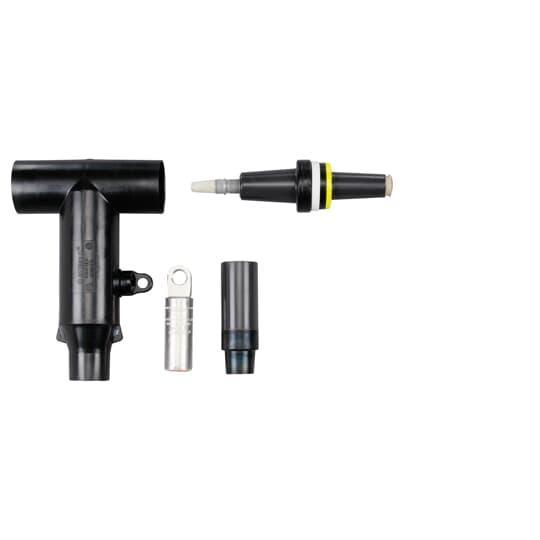

Elastimold® 656LRTP-J0320 Stick-Op Reducing Tap Plug Connector With Test Point, 15 kV, 200 to 600 A, 450 kcmil Stranded/Compressed, 500 to 550 kcmil Solid/Compact Conductor, 0.98 to 1.18 in Dia Cable, EPDM Rubber
Sku #07511426722
MFG #656LRTP-J0320
Attributes
| Voltage Rating: | 15 kV |
| Conductor Size: | 450 kcmil Stranded/Compressed, 500 to 550 kcmil Solid/Compact |
| Specifications: | -40 to 65 deg C |
| Amperage Rating: | 200 to 600 A |
| Cable Diameter: | 0.98 to 1.18 in |
| Material: | EPDM Rubber |
- Provides an external visible break by hotstick removal of the elbow
- Connect 600 A Interface to 200 A Loadbreak Tap
- ANSI Specified|IEEE 386
