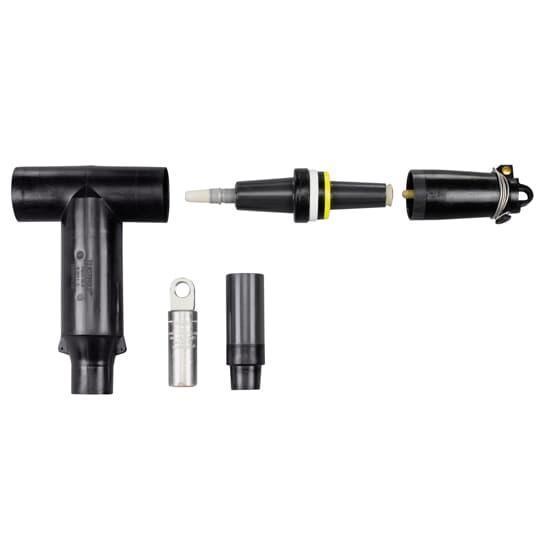

Elastimold® 655LRTP-G0230-DRG Stick-Op Reducing Tap Plug Connector With Insulating Cap, 15 kV, 200 to 600 A, 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact, 50 sq-mm Compact Conductor, 0.76 to 0.95 in Dia Cable, EPDM Rubber
Sku #07511426625
MFG #655LRTP-G0230-DRG
Attributes
| Voltage Rating: | 15 kV |
| Conductor Size: | 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact, 50 sq-mm Compact |
| Specifications: | -40 to 65 deg C |
| Amperage Rating: | 200 to 600 A |
| Cable Diameter: | 0.76 to 0.95 in |
| Material: | EPDM Rubber |
- Peroxide-cured insulation and jacket
- All copper current path
- Constructed of EPDM molded rubber
- Provides an external visible break by hotstick removal of the elbow
- Without test point
- Connect 600 A Interface to 200 A Loadbreak Tap
- Hex-Broach
- ANSI Specified|IEEE 386
