Elastimold® 167RLR-H-5260 Loadbreak Replacement Elbow Connector, 15 kV, 200 A, 3/0 AWG Stranded/Compressed, 4/0 AWG Solid/Compact, 95 sq-mm Compact Conductor, 0.85 to 1.05 in Dia Insulation, EPDM Rubber
Sku #07511426443
MFG #167RLR-H-5260
Attributes
| Series: | 167RLR |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.85 to 1.05 in |
| Voltage Rating: | 15 kV |
| Conductor Size: | 3/0 AWG Stranded/Compressed, 4/0 AWG Solid/Compact, 95 sq-mm Compact |
| Material: | EPDM Rubber |
- ANSI Specified|IEEE 386

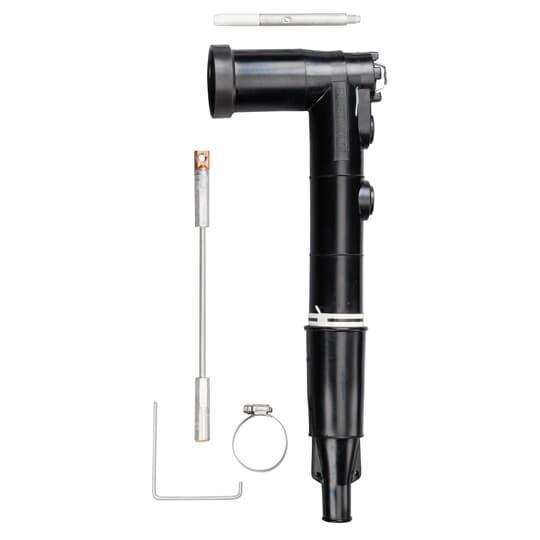

- (1) 167BRLR-W Elbow Connector Housing, (1) 00400XXX Compression Lug, (1) 166LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, (1) IS-0417 Installation Instruction, (1) CC-0060 Crimp Chart and (1) 65-27-2 Hose Clamp
- For connecting to and operating 15 kV class and 95 kV BIL apparatus
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Extended length housing and compression lug - plus 10-1/2 in
