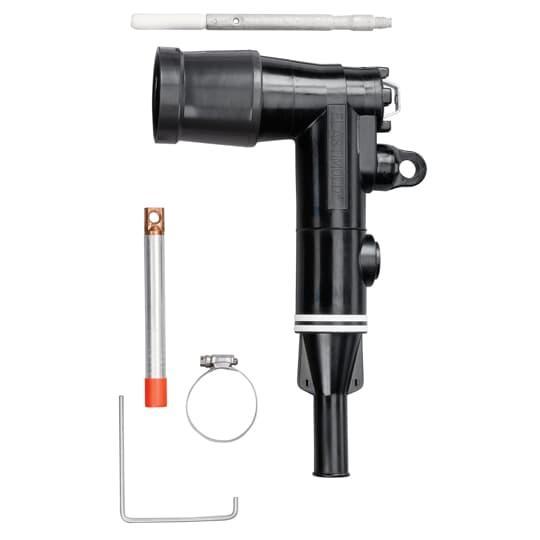

Elastimold® 274ELR-88110-5240 Loadbreak Repair Elbow Connector With Test Point, 25 kV, 200 A, 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact Conductor, 0.88 to 1.1 in Dia Insulation, EPDM Rubber
Sku #07511425205
MFG #274ELR-88110-5240
Attributes
| Series: | 274ELR |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.88 to 1.1 in |
| Voltage Rating: | 25 kV |
| Conductor Size: | 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact |
| Connector Type: | Compression |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured insulation, insert and jacket
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Extended length housing and compression lug - plus 3-1/4 in
- Non-corrosive capacitive test point
- For connecting to and operating 25 kV class, 125 kV BIL apparatus
- (1) 274BELR-W Elbow Connector Housing, (1) 02509XXX Compression Lug, (1) 274LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, (1) IS-0289 Installation Instruction, (1) CC-0020 Crimp Chart and Peroxide VD Cap
- ANSI Specified|IEEE 386
