Elastimold® 167LRT-G5220-S Loadbreak Bolted Elbow With Tap, 15 kV, 200 A, 2 AWG Stranded/Compressed, 1 AWG Solid/Compact, 35 sq-mm Compact Conductor, 0.76 to 0.95 in Dia Insulation, EPDM Rubber
Sku #07511424882
MFG #167LRT-G5220-S
Attributes
| Series: | 167LRT |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.76 to 0.95 in |
| Voltage Rating: | 15 kV |
| Conductor Size: | 2 AWG Stranded/Compressed, 1 AWG Solid/Compact, 35 sq-mm Compact |
| Material: | EPDM Rubber |
- For connecting to and operating 15 kV class and 95 BIL distribution apparatus
- ANSI Specified|IEEE 386

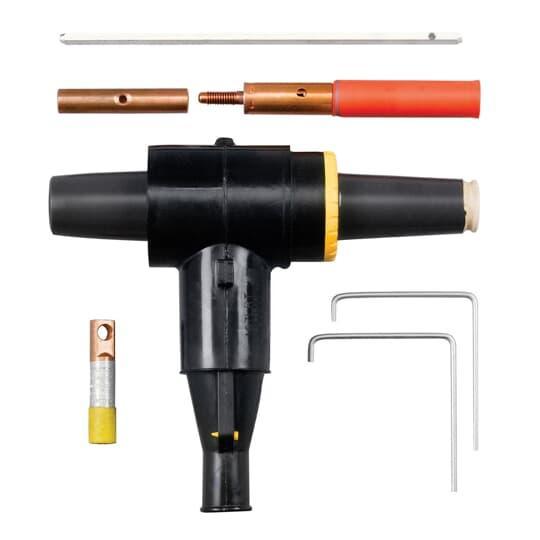

- (1) 167LRT-W Elbow Connector Housing, (1) 02800X Compression Lug, (1) 167-112 Stud Extender, (1) 82-08 Lubricant Tube, (1) 200-15 Installation Tool, (1) 271-94 Wrench, Cold-Shrinkable Jacket Seal, (1) IS-0354-167LRT Installation instruction and (1) IS-0020-02500CC Crimp Chart
