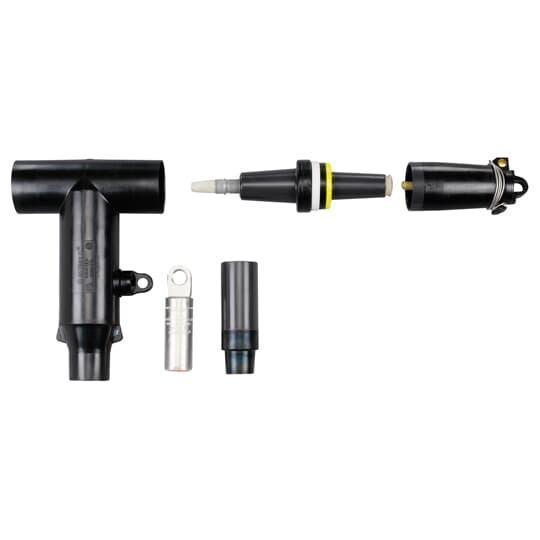

Elastimold® 676LRTP-K2330-DRG Stick-Op Reducing Tap Plug Connector With Test Point and Insulated Cap, 15 kV, 200 to 900 A, 500 kcmil Stranded/Compressed, 600 kcmil Solid/Compact, 250 to 300 sq-mm Compact Conductor, 1.09 to 1.31 in Dia Cable, EPDM Rubber
Sku #07511423906
MFG #676LRTP-K2330-DRG
Attributes
| Voltage Rating: | 15 kV |
| Conductor Size: | 500 kcmil Stranded/Compressed, 600 kcmil Solid/Compact, 250 to 300 sq-mm Compact |
| Specifications: | -40 to 65 deg C |
| Amperage Rating: | 200 to 900 A |
| Cable Diameter: | 1.09 to 1.31 in |
| Material: | EPDM Rubber |
- Connect 900 A Interface to 200 A Loadbreak Tap
- Provides an external visible break by hotstick removal of the elbow
- ANSI Specified|IEEE 386
Elastimold®Elastimold® 676LRTP-K2330-DRG Stick-Op Reducing Tap Plug Connector With Test Point and Insulated Cap, 15 kV, 200 to 900 A, 500 kcmil Stranded/Compressed, 600 kcmil Solid/Compact, 250 to 300 sq-mm Compact Conductor, 1.09 to 1.31 in Dia Cable, EPDM Rubber
SKU #07511423906
MFG #676LRTP-K2330-DRG
