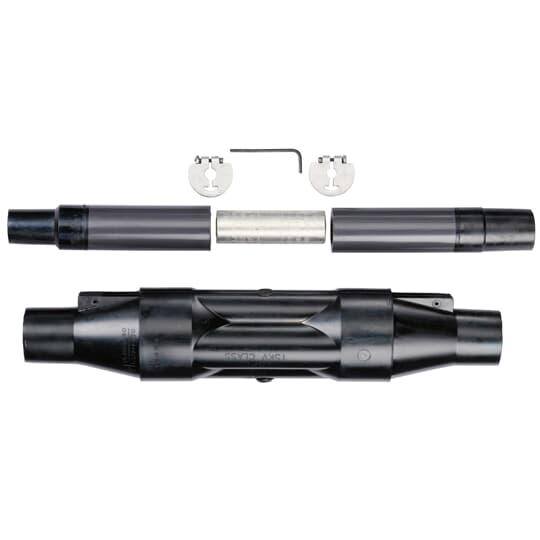

Elastimold® 15PCJ2F1200 Style 2 Power Cable Joint With Universal Housing and Separate Cable Adapter, 15 kV, 4 AWG Stranded, 3 AWG Solid Conductor, EPDM Rubber
Sku #07511423901
MFG #15PCJ2F1200
Attributes
| Type: | Style 2 |
| Cable Type: | Fabric Tape Shielded/Lead Jacketed |
| Insulation Size: | 0.64 to 0.82 in |
| Voltage Rating: | 15 kV |
| Conductor Size: | 4 AWG Stranded, 3 AWG Solid |
| Number of Conductors: | 2 |
- IEEE 404
- Power cable joints utilize permanently crimped connectors
- PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other severe service applications
- Units have been designed and tested per IEEE standard 404 to ensure system matched performance and ratings equal to the cable to which the splice will be installed
- Style 2 designs incorporate a universal housing with separate cable adapters to allow transition splices of different types and sizes of cable
- For direct burial, vault, submersible and other severe service applications
Elastimold®Elastimold® 15PCJ2F1200 Style 2 Power Cable Joint With Universal Housing and Separate Cable Adapter, 15 kV, 4 AWG Stranded, 3 AWG Solid Conductor, EPDM Rubber
SKU #07511423901
MFG #15PCJ2F1200
