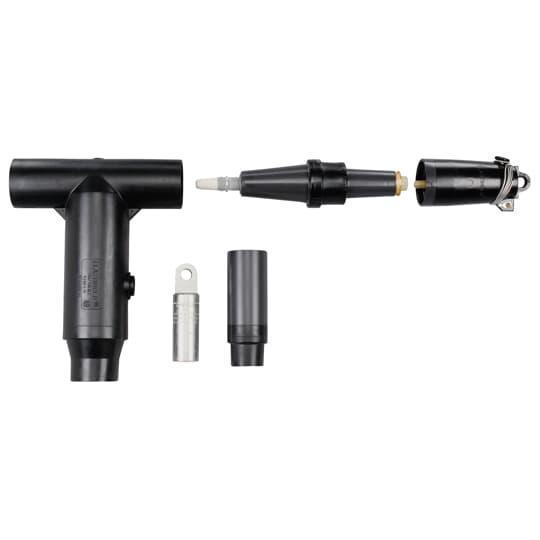

Elastimold® 755LRTP-L0280-DRG Stick-Op Elbow Connector With Test Point and Insulated Cap, 35 kV, 200 to 600 A, 250 kcmil Stranded/Compressed, 300 kcmil Solid/Compact Conductor, 1.18 to 1.465 in Dia Cable, EPDM Rubber
Sku #07511420551
MFG #755LRTP-L0280-DRG
Attributes
| Voltage Rating: | 35 kV |
| Conductor Size: | 250 kcmil Stranded/Compressed, 300 kcmil Solid/Compact |
| Specifications: | -40 to 65 deg C |
| Amperage Rating: | 200 to 600 A |
| Cable Diameter: | 1.18 to 1.465 in |
| Material: | EPDM Rubber |
- Peroxide-cured insulation and jacket
- All copper current path
- Constructed of EPDM molded rubber
- Mates with a 600 Amp elbow interface and provides a 200 Amp load break tap, an access hole thru the bore of the reducing tap plug allows use of a 600AT operating tool to bolt and secure the component to a mating 600 Amp elbow and apparatus bushing
- 755BLR Elbow Housing, 750ETP Reducing Tap Plug, 375DRG Insulated Cap, 755CA-W Cable Size Adapter, 03700X Compression Lug, 82-08 Lubricant Tube, IS-0244 Instruction Sheet, CC-0050 Crimp Chart and Hex-Broach
- ANSI Specified|IEEE 386
