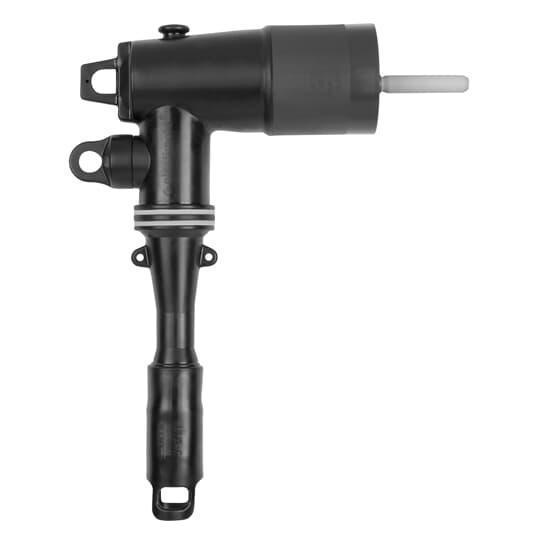

Elastimold® 262LRJS-C5220 Insulated Loadbreak Elbow Connector With Test Point and Jacket Seal, 28 kV, 200 A, 2 to 1 AWG Conductor, 0.805 to 1.06 in Dia Insulation, EPDM Rubber
Sku #07511419308
MFG #262LRJS-C5220
Attributes
| Type: | Insulated |
| Amperage Rating: | 200 A |
| Conductor Type: | Compressed Stranded/Compacted Solid Bi-Metal |
| Voltage Rating: | 28 kV |
| Conductor Size: | 2 to 1 AWG |
| Insulation Diameter: | 0.805 to 1.06 in |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Built-in cable jacket seal
- Long bi-metal compression lug is standard
- Non-corrosive capacitive test point
- For all weather conditions
- (1) Elbow Connector Housing, (1) Compression Lug, (1) Probe, (1) Probe Wrench, (1) Tube of Lubricant, (1) Butyl Auto Tape, (1) Crimp Chart, (1) V.D. Cap-Peroxide and (1) Installation Instruction Sheet
- ANSI Specified|IEEE 386
