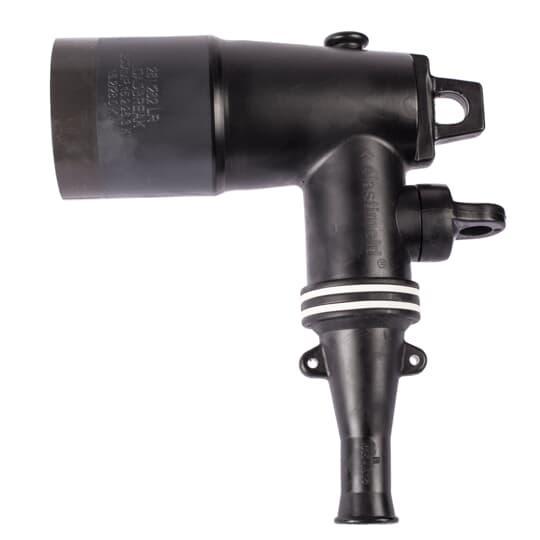

Elastimold® 262LR-B5230 Insulated Loadbreak Elbow Connector With Test Point, 28 kV, 200 A, 1 to 1/0 AWG Conductor, 0.635 to 0.905 in Dia Insulation, EPDM Rubber
Sku #07511419191
MFG #262LR-B5230
Attributes
| Type: | Insulated |
| Amperage Rating: | 200 A |
| Conductor Type: | Compressed Stranded/Compacted Solid Bi-Metal |
| Voltage Rating: | 28 kV |
| Conductor Size: | 1 to 1/0 AWG |
| Insulation Diameter: | 0.635 to 0.905 in |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Non-corrosive capacitive test point
- Long bi-metal compression lug is standard
- (1) Elbow Connector Housing, (1) Compression Lug, (1) Probe, (1) Probe Wrench, (1) Tube of Lubricant, (1) Crimp Chart, (1) V.D. Cap-Peroxide and (1) Installation Instructions Sheet
- ANSI/IEEE 386
